FSK3
FST
FST-00113

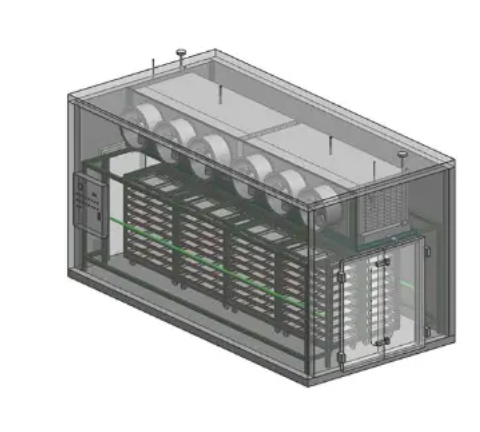

The FSK3 Series Custom Bakery Blast Freezer is a tailored batch freezing solution engineered for commercial bread manufacturers and centralized bakery supply chains. Designed to solve the core needs of bread product preservation, texture retention, and batch production, this equipment delivers rapid deep freezing performance, capable of bringing bread products from +26℃ to -18℃ efficiently while locking in the freshness, flavor, and soft texture of baked goods. It supports customizable design based on production capacity, workshop space, and product specifications, making it suitable for both small-batch artisanal bakeries and large-scale industrial bread production facilities. The equipment design strictly follows national refrigeration design codes, ensuring stable and safe operation in long-term bakery production environments.
4.FSK3 Blast freezer project table PU6 surface thermal insulation material | ||||||||||
NO. | Name | Model | Unit | Qty | Note | Bran | Picture show | |||
1. | 4*2*2.4m -35℃ PU double stainless steel steel insulation board | δ：150mm | ㎡ | 46 | Thickness:δ150mm，Thick steel:δ0.5mm，Bulk density:40±2kg/m³ | |||||
2 | Manual sliding door, Air curtain | 2200×900m×150mm | set | 2 | steel part，The door frame is made of aluminum alloy，stainless steel plate thickness＆0.5mm | |||||
3 | Lighting lamp | 30W | set | 4 | Moisture-proof | CHINA | ||||
Refrigeration equipment and main valve parts | ||||||||||
NO. | Name | Model | Unit | Qty | Note | Brand | Picture show | |||
1 | compressor unit | HSN64761-50Y | set | 1 | Blast freezer | Bitzer brand compressor | ||||
1.1 | Evaporator (Blast freezer) | ZF 300 | set | 1 | Copper tube aluminum fin plate spray treatment Distance：12-18mm | CHINA | ||||
二 | Refrigeration valves | Stop valve | SET | Danfoss | ||||||
Filter | SET | Danfoss | ||||||||
Solenoid valve | SET | Danfoss | ||||||||
Expansion valve | SET | Danfoss | ||||||||
四 | Electrical system control | |||||||||
1. | Electrical automatic control | FST-HSN6461-50Y | set | 1 | ||||||
Operation condition | Compressor unit type | Refrigerating capacity | Input power | 380V/50HZ |
-40/+40℃ | HSN6461-50Y | 45Kw | 38.8Kw |
Compressor unit name | unit | Screw compressor unit | |
Compressor unit type | FST-HSN6461-50Y | ||
Compressor | 1set | Bitzer HSN6461-50Y | |
Compressor | Theory Displacement | m3/h | 198m3/h 60HZ |
Energy Adjustable range | 100%-75%-50% | ||
Refrigerant | type | R404A | |
Design conditions | ℃ | -40℃/40℃ | |
Refrigeration capacity | KW | 45KW | |
Voltage and power | 3N/60Hz/220V38KW | ||
oil cooler | liquid cooling | ||
Overall dimensions(L*W*H) | mm | 1500×1250×1500 | |
unit weight | kg | ～850 | |
Evaporator condenser parameter
Type | ZFLA300 | |
Heat exhaust (kw) | 300 | |
Fan | quantity | 2sets |
Blowing rate（m3/h） | 25000m3/h | |
Power(kw) | 2×1.1KW | |
Water pump | Power（KW） | 1.1kw×1set |
Overall dimensions（mm）L*W*H | 2200×1080×3760mm | |
operating weight KG | 3000 | |
Technical parameters of evaporator
Type | ZF300 | |
Heat exchange area | 300㎡ | |
Fan motor | Qty | 4set |
Air volume（m3/h） | 15000m3/h | |
Power(w) | 4*1100 | |
Duct diameter | Φ700mm | |
Distance | 12mm-18mm | |
Supply power | 60HZ 220 V | |
Method of removing frost | Water frost | |
Material | Aluminum tube Aluminum fin | |
Size（mm）L*W*H | 3000×1100×1700mm | |
Standard | GB IP65 | |
We provide end-to-end customization for the freezer’s internal volume, layout, refrigeration power, and accessory matching, based on your actual production needs. Whether you need to freeze 240kg of bread per hour or other specific output targets, we can design a solution that perfectly matches your production scale, with full compatibility for standard and custom bakery trolleys.
The equipment is equipped with a world-renowned Bitzer screw compressor, paired with an evaporative condenser and ceiling-type aluminum tube aluminum fin air cooler, delivering strong and stable refrigeration performance. The core refrigeration valves adopt internationally renowned brands such as Danfoss, ensuring reliable operation, fast cooling speed, and precise temperature control to meet the strict freezing requirements of bread products.
The warehouse body uses 150mm thick double-sided stainless steel polyurethane insulation panels with a density of 40±2kg/m³, connected by eccentric hooks with seamless sealing treatment, minimizing cold loss and reducing energy consumption. The freezer door is equipped with a safety locking device that supports emergency escape from inside the warehouse, paired with moisture-proof LED lighting and IP65 rated electrical components, ensuring safe operation in high-humidity bakery production environments.
The independent electrical control system adopts core components from ABB, Schneider, and Siemens, with real-time temperature automatic control and stepless energy regulation functions. It can adjust the refrigeration output according to actual loading and temperature conditions, reducing unnecessary energy consumption while ensuring stable freezing effect, and lowering long-term operation costs for production enterprises.
This blast freezer is suitable for commercial bread bakeries, frozen baked goods manufacturers, central kitchen bakery facilities, and pastry and dessert processing enterprises. It is primarily used for batch freezing of finished bread, pre-baked bakery products, pastry items, dough blocks, and other bakery-related products. It can also be adapted for freezing of flour products, seafood, and prepared foods, meeting diverse batch freezing needs in food production.
Absolutely. Our design team will tailor the freezer’s volume, refrigeration power, and internal layout based on your production requirements, such as the 240kg per hour bread freezing capacity requested by our long-term bakery client, to ensure the equipment fully meets your output targets.
The freezer is equipped with an internal emergency escape safety door lock, moisture-proof explosion-proof LED lighting, waterproof copper core cables, and IP65 rated electrical components, fully adapting to the high-humidity, high-frequency operation environment of bakery workshops, and ensuring the safety of operators and equipment.
We use internationally renowned brand components for all core parts, including Bitzer screw compressors, Danfoss refrigeration valves, and ABB, Schneider, Siemens electrical components, to ensure long-term stable operation, low failure rate, and easy maintenance for your production line.
For industrial bakery operators and food production enterprises in need of reliable batch freezing solutions, we provide full-process services from pre-sales site survey and scheme design to after-sales installation and commissioning. Contact our professional team today to get a free customized technical solution and detailed quotation for your bread production line.
