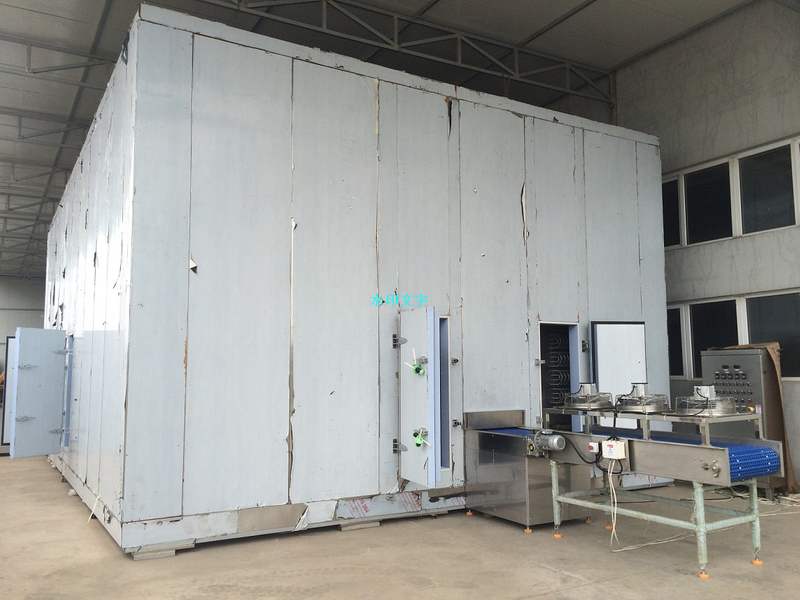

High Quality Double Spiral Freezer 1000kg -3000kg/h for Frozen Food Seafood Processing

Spiral freezer is mainly used for large pieces of frozen seafood, jelly, frozen seafood and frozen prepared foods.
Occupy a small place, highly automated. High capacity.
Availability:
Quantity:
  • FDSL

  • FST

  • FST-0011

Spiral freezer product description:

FDSL series double spiral freezer  is a high efficiency apparatus frozen
It covers an area of small, compact structure, large databases, become the first choice of modern frozen food company

It is made of 304 stainless steel, in addition to the motor, the blower wheel, the evaporator tubes and fins, and electrical components.

The machine is equipped with a bottom freezer; user does not need to be incubated fund.
Spiral freezer widely used in fried food, aquatic products, all kinds of pasta, prepared foods, meat and other foods

the 2000kg/h double spiral freezer parameters as follow:

frozen product :fish

capacity: 2000kg/h

cooling capacity: 340kw (±40℃)

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 10*7*3m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and  Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.



double spiral freezer drawing


spiral freezer inside

spiral freezer inside
