Specifying industrial freezing equipment carries high stakes for any food processing facility. Miscalculating sizing parameters leads to chronic production bottlenecks or wasted capital on oversized refrigeration plants. You face a strict engineering challenge from day one. You must balance required throughput in kilograms per hour with strict facility footprint constraints. At the same time, you must maintain strict product quality. This means preventing clumping, dehydration, or cellular damage during the thermal transfer process. We outline a systematic, evidence-based workflow for sizing your equipment accurately. You will move from initial thermal load estimates to precise belt width, residence time, and custom-engineered equipment selection. Getting these metrics right ensures your production line runs continuously without unexpected downtime or compromised food safety standards. We will walk through the exact variables engineers use to match thermal loads with physical factory space.

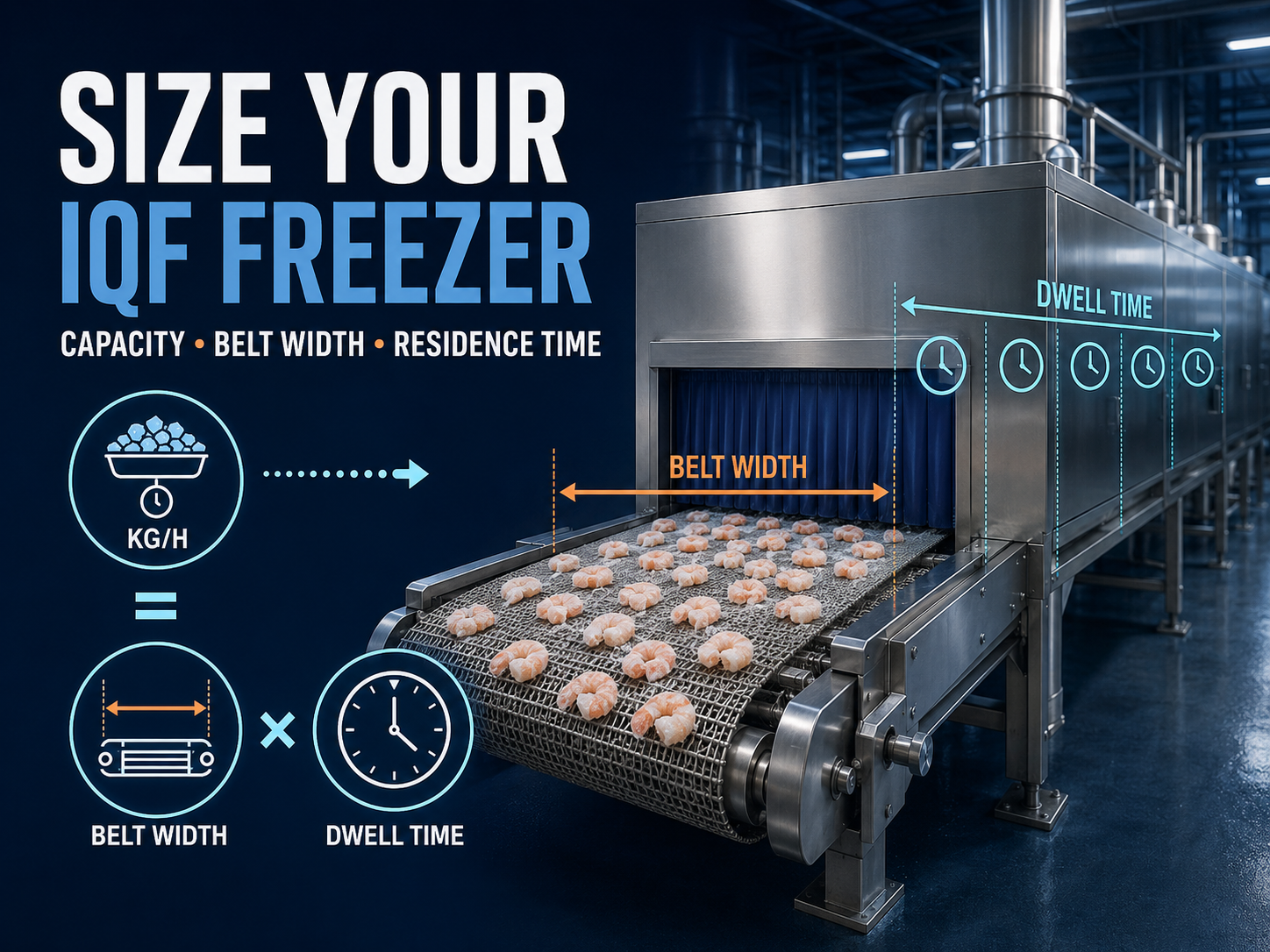

Capacity is Multi-Dimensional: True throughput is a function of belt loading density, belt speed, and effective freezing area, not just the raw horsepower of the refrigeration compressor.
Residence Time Dictates Footprint: Dwell time must be empirically matched to the specific thermal properties, moisture content, and physical dimensions of the product being frozen.
Equipment Type Alters the Math: Selecting between spiral, linear tunnel, and fluidized IQF freezers fundamentally changes the footprint-to-capacity ratio and the required sizing calculations.
Airflow is the Hidden Variable: Oversizing refrigeration loads without optimizing aerodynamic airflow leads to excessive energy waste, frost buildup, and potential product damage.
Understanding the difference between nominal average capacity and peak seasonal production loads dictates the success of your installation. Harvest seasons bring massive influxes of raw materials that overwhelm undersized systems. A baseline capacity requirement must account for upstream processing fluctuations. Fryers, blanchers, and washers often create unpredictable product surges. If your upstream potato processing line pushes 2500 kg/hr in short 15-minute bursts, sizing your freezer for a strict 2000 kg/hr average will cause immediate bottlenecks. Product will back up on the vibratory conveyors, leading to temperature abuse and spoilage before the food even enters the freezing chamber.
Ambient operating conditions also impact baseline load calculations. High humidity in the processing room introduces excess moisture into the freezing chamber. Washdown shifts leave standing water on the floors, which evaporates and gets pulled into the enclosure. This moisture turns into frost on the evaporator coils, reducing overall cooling efficiency. Summer operating conditions demand more refrigeration capacity than winter conditions. You must size the system to handle the worst-case ambient scenario to ensure continuous production.
Residence time is the exact duration a product must remain in the freezing zone to reach the target core temperature. In the frozen food industry, this target is almost universally -18°C. Product thickness heavily dictates this metric. A 10mm garden pea requires a dwell time of roughly 3 to 4 minutes. A 40mm thick marinated chicken breast requires a significantly longer dwell time, often exceeding 35 minutes, because heat takes longer to migrate from the core to the surface. You cannot rush the laws of thermodynamics by simply lowering the air temperature.
Water content changes the calculation entirely. High-moisture foods require more thermal energy removal to freeze completely due to the latent heat of water. Starting temperature, known as the infeed temperature, is another major factor. Products entering straight from a fryer at +85°C carry massive heat loads. They demand much longer residence times compared to pre-chilled items coming from a hydro-cooler at +4°C. Every degree of infeed temperature adds to the required dwell time and the total refrigeration load.
Belt loading density is measured in kilograms per square meter (kg/m²). You must determine the maximum allowable loading without causing product agglomeration. Overloading the belt causes individual pieces to freeze together into solid blocks. This ruins the individually quick frozen standard and leads to rejected batches. A proper loading density ensures each piece of food is surrounded by high-velocity cold air.
There is a strict inverse relationship between belt width and tunnel length. If you select a narrower belt to save upfront costs, you must increase the tunnel length or spiral height to maintain the required freezing area. Belt loading limits also ensure gentle quality handling. Fragile products like raspberries stacked too high will crush under their own weight before they freeze solid. You must balance the physical width of the belt with the structural integrity of the food being processed.
Fluidization is strictly engineered for small, uniform items. Think of peas, berries, diced vegetables, and small fruits. The system uses high-velocity upward airflow to lift and suspend the product off the belt. This creates a fluid-like bed of moving food particles, preventing them from sticking together. Sizing a fluidized system requires specific upward air velocity calculations based on the aerodynamic profile of the food.
The fans must generate enough static pressure to overcome the weight of the product bed. This impacts the required fan power and maximum bed depth. If the bed is too deep, the air cannot penetrate, and the product clumps instantly. If the airflow is too strong, lightweight products blow off the belt and into the evaporator coils. Precision aerodynamics dictate the capacity of these specific units, requiring careful fan selection and variable frequency drives (VFDs) for fine-tuning.
Spiral systems maximize vertical space inside a factory. They are ideal for meat, poultry, bakery items, and ready meals. Sizing mechanics focus heavily on tier pitch and total belt length. Tier pitch is the vertical distance between belt levels. You calculate this based on the maximum product height plus a mandatory clearance for horizontal airflow, typically around 50mm. If the pitch is too tight, air cannot circulate across the product, and freezing times double.
Total belt length is dictated by the required dwell time and belt speed. A dense product requiring a 60-minute freeze needs a massive amount of belt inside the enclosure. Because the belt spirals upward, you can pack hundreds of meters of effective freezing length into a very small square footprint. However, denser products require more refrigeration capacity per square meter, which can limit the maximum belt speed and dictate a larger central refrigeration plant.
A linear iqf freezer handles delicate items perfectly. Fish fillets, French fries, and delicate pastries require gentle quality handling. They cannot survive the tumbling action of a fluidized bed or the complex belt transitions of some spiral systems. In a linear system, the product stays flat and undisturbed from the infeed shaker to the discharge conveyor.
Tunnel length is strictly dictated by belt speed and residence time. If a product needs 15 minutes to freeze, the tunnel must be long enough to contain 15 minutes of continuous travel at the required production rate. This requires significant linear floor space. You often need custom engineering to fit these units into existing processing lines, sometimes requiring building extensions or line reconfigurations to accommodate the straight-line footprint.
Freezer Type | Ideal Product Types | Primary Sizing Constraint | Footprint Characteristic |
|---|---|---|---|
Fluidized | Peas, berries, diced vegetables | Upward air velocity and bed depth | Moderate linear space, high vertical clearance for fans |
Spiral | Meat, poultry, bakery, ready meals | Tier pitch and total belt length | Compact square footprint, utilizes vertical space |
Linear Tunnel | Fish fillets, French fries, pastries | Belt speed and residence time | Requires long, continuous linear floor space |
You must calculate the total heat removal required before selecting any equipment. This is measured in kilowatts (kW) or Tons of Refrigeration (TR). The formula relies on the specific heat of the product above freezing and the specific heat below freezing. Different foods release heat at different rates. You also must factor in the latent heat of fusion. This is the massive spike in energy required to change the liquid water inside the food into solid ice.
The desired temperature pull-down range sets the boundaries of your calculation. Moving a product from +85°C to -18°C demands a massive refrigeration plant compared to moving it from +4°C to -18°C. You calculate the enthalpy change for every kilogram of product passing through the system per hour. This baseline number dictates the size of the compressors, condensers, and evaporators required to maintain the enclosure temperature.
The mathematical foundation for physical sizing bridges the gap between thermal requirements and physical factory space. You determine the exact square meterage needed to hold the product during its dwell time.
Determine the target production rate in kilograms per hour (e.g., 2000 kg/hr).
Establish the required residence time in hours (e.g., 30 minutes = 0.5 hours).
Identify the maximum belt loading density in kg/m² through empirical testing.
Multiply the production rate by the residence time to find the total product weight inside the freezer at any given moment.
Divide that total weight by the belt loading density to find the Required Belt Area.
Once you have the total required area, you translate it into practical dimensions. You divide the total area by your chosen belt width to find the effective freezing length. If the calculated length exceeds your building dimensions, you must increase the belt width or switch from a linear tunnel to a spiral configuration.
Airflow velocity and temperature directly affect the convective heat transfer coefficient. Standard operating temperatures inside the enclosure range from -35°C to -40°C. Faster airflow strips heat away from the product more rapidly. This reduces the required residence time and allows for a shorter belt. High-velocity air acts like a thermal sponge, constantly replacing warmed air with sub-zero air at the product surface.
High-velocity fans increase the internal heat load of the freezing chamber. Fan motors generate mechanical heat that the refrigeration system must remove. Balancing fan speed against energy consumption is a strict engineering requirement. Pushing fan speeds too high yields diminishing returns, wasting power and requiring larger compressors without significantly improving freeze times.
Factory layouts dictate equipment geometry. You face a strict trade-off between utilizing vertical space and linear space. Spiral freezers dominate tight, square footprints where ceiling height is available. Tunnel freezers require long, narrow halls. Total tunnel length, belt width, and enclosure dimensions must be custom-engineered to fit your specific floor plan.
Relying on standard catalog sizes often leads to awkward factory layouts or compromised production lines. You might have to introduce unnecessary conveyor bends, which damage fragile products before they freeze. An industrial iqf freezing machine must adapt to the building infrastructure, structural columns, and drainage systems, not the other way around. Custom engineering ensures the equipment integrates seamlessly with your existing material handling systems.
The calculated thermal load dictates your central refrigeration plant sizing. The compressors must handle the peak product load, plus fan motor heat, plus transmission heat leaking through the insulated panels. Refrigerant selection heavily impacts evaporator coil design and overall plant efficiency. Ammonia (NH3) offers exceptional thermodynamic efficiency for large industrial plants but requires strict safety protocols and specialized engine rooms.
Carbon dioxide (CO2) is gaining traction due to environmental regulations and its excellent low-temperature performance in transcritical booster systems. Synthetic refrigerants (Freon variants) remain common in smaller or decentralized systems where ammonia is prohibited by local zoning laws. Each refrigerant requires specific piping, valve sizing, and coil geometries to function efficiently at -40°C suction temperatures.
Frost buildup on evaporators is inevitable in any freezing operation. Moisture from the hot product and ambient air entering the enclosure freezes onto the cold coils. This frost acts as an insulator, severely reducing cooling capacity over a shift. Sizing strategies must account for continuous operation requirements. You cannot stop a 24-hour production line just to melt ice off the coils.
Sequential defrost systems solve this by allowing one coil section to defrost using hot gas while the other sections keep freezing the product. Alternatively, you can oversize the coils and increase the fin spacing to 12mm or 16mm. A larger fin spacing takes much longer to clog with frost. This extends run times between mandatory cleaning cycles, keeping the processing line running longer and maintaining throughput.
Theoretical math is only a starting point. Relying solely on generic equations as a final specification is highly dangerous. Equations serve as screening tools to get you into the right ballpark. You must conduct physical product testing in a pilot freezer before finalizing any equipment purchase. Real-world variables disrupt theoretical math constantly.
Product shape irregularities, surface moisture variations, and fat content cannot be perfectly modeled on paper. A pilot test reveals exactly how the food behaves under high-velocity cold air. It validates your assumptions regarding belt loading limits and actual dwell times. Skipping this step often results in buying a machine that looks great on paper but fails on the factory floor.
Improper sizing strips moisture from the product. Mismatched airflow and coil temperatures cause severe dehydration during the freezing process. This reduces your final product yield and directly harms profitability. You are literally blowing water weight out the exhaust. When you sell by the kilogram, losing 3% of your moisture to the evaporator coils is a massive financial loss.
Failing to design for gentle handling exacerbates cellular damage. Damaged cells leak more moisture. A properly sized system locks in moisture rapidly by freezing the outer crust in seconds. This preserves weight, visual appeal, and nutritional value. Optimizing the temperature differential between the air and the refrigerant prevents this dehydration.
Sizing the freezing chamber correctly is only half the battle. You risk massive failures if you ignore the surrounding infrastructure. The peripheral equipment must match the exact specifications of the freezer.
Infeed vibratory shakers must distribute the product evenly across the full belt width to prevent center piling.
Glazing equipment must match the exact throughput rate of the freezer to ensure uniform ice coating.
Discharge conveyors must handle the frozen volume without causing jams or breakage at transfer points.
Packaging scales must cycle fast enough to keep up with the continuous discharge of frozen product.
Frozen food is brittle and easily shattered by poorly designed transfer points. If the peripheral equipment cannot match the belt width and speed of the main chamber, your perfectly sized freezing equipment becomes a massive bottleneck.
Compile your specific product data sheets, including exact physical dimensions, moisture content percentages, and maximum infeed temperatures.
Request a detailed thermal modeling assessment from a qualified manufacturer based on your worst-case production scenarios.
Schedule a physical pilot test with your most difficult, high-moisture product to validate the engineering assumptions regarding dwell time and belt loading.
Evaluate OEM proposals based on guaranteed performance metrics, such as yield retention and exact kg/hr throughput, rather than standard catalog dimensions.
A: Dwell time is calculated based on the product's starting temperature, target core temperature (usually -18°C), thickness, and water content. While thermal equations provide a baseline, accurate dwell time requires empirical testing in a pilot freezer to account for surface irregularities and specific heat transfer rates.
A: Common industry belt widths are 600mm, 1000mm, and 1200mm. However, there is no universal standard. Final selection requires custom engineering based on your required production scale, belt loading limits, and available factory floor space to ensure the correct effective freezing area.
A: Denser products require more thermal energy removal per square meter of belt space. This demands higher refrigeration capacity. If the central refrigeration plant cannot handle the dense load, you must slow down the belt speed, which directly reduces your overall kg/hr capacity.
A: Mechanical sizing involves high capital costs but low operating costs, relying on compressors and large footprints. Cryogenic sizing uses liquid nitrogen or CO2, offering a very small footprint and rapid freezing, but incurs extremely high ongoing consumable costs for the liquid gases.
A: A realistic baseline ranges from 100 to 150 kW (28 to 42 Tons of Refrigeration) per 1000 kg/hr. However, exact numbers depend heavily on the specific heat, water content, and infeed temperature of the food. Frying applications require significantly more capacity than pre-chilled products.
A: Yes, but within hard physical limits. Realistic upgrade paths include lowering the suction pressure of the compressors, upgrading to high-efficiency fans, or adding an upstream pre-chilling stage. However, you cannot exceed the physical square meter limits of the existing belt.
