Incorrectly sizing your freezing equipment carries severe operational and financial risks. Undersizing creates immediate production bottlenecks and compromises food safety by allowing bacterial growth during extended pull-down times. Oversizing leads to wasted capital expenditure and excessive energy consumption that drains operational budgets. Standard refrigeration calculators often fail for trolley-based systems because they assume uniform product distribution. They simply do not account for airflow blockage, tray density, and the specific thermal dynamics of batch-continuous processing. You need a reliable, field-tested method to evaluate your exact requirements before making a major equipment decision. We will outline a comprehensive engineering framework to accurately determine the capacity, footprint, and technical specifications required when evaluating a tunnel blast freezer for your facility. You will learn how to align thermal mathematics with physical facility constraints to ensure optimal freezing performance and eliminate production bottlenecks.
Capacity is dictated by dwell time: True throughput is a function of product specific heat, entry/exit temperatures, and the required dwell time, not just physical floor space.
Airflow management equals efficiency: Sizing must account for internal clearances to prevent air bypass around trolleys, ensuring high-velocity cold air is forced *through* the product trays.
Modularity mitigates future risk: Specifying a modular air blast tunnel freezer allows for phased expansion (e.g., expanding from 3 meters to 9+ meters) without requiring a complete system replacement or major facility shutdowns.
Facility constraints dictate design: Floor insulation, ceiling height, drainage, and available power supply are hard constraints that must be evaluated before finalizing freezer dimensions.

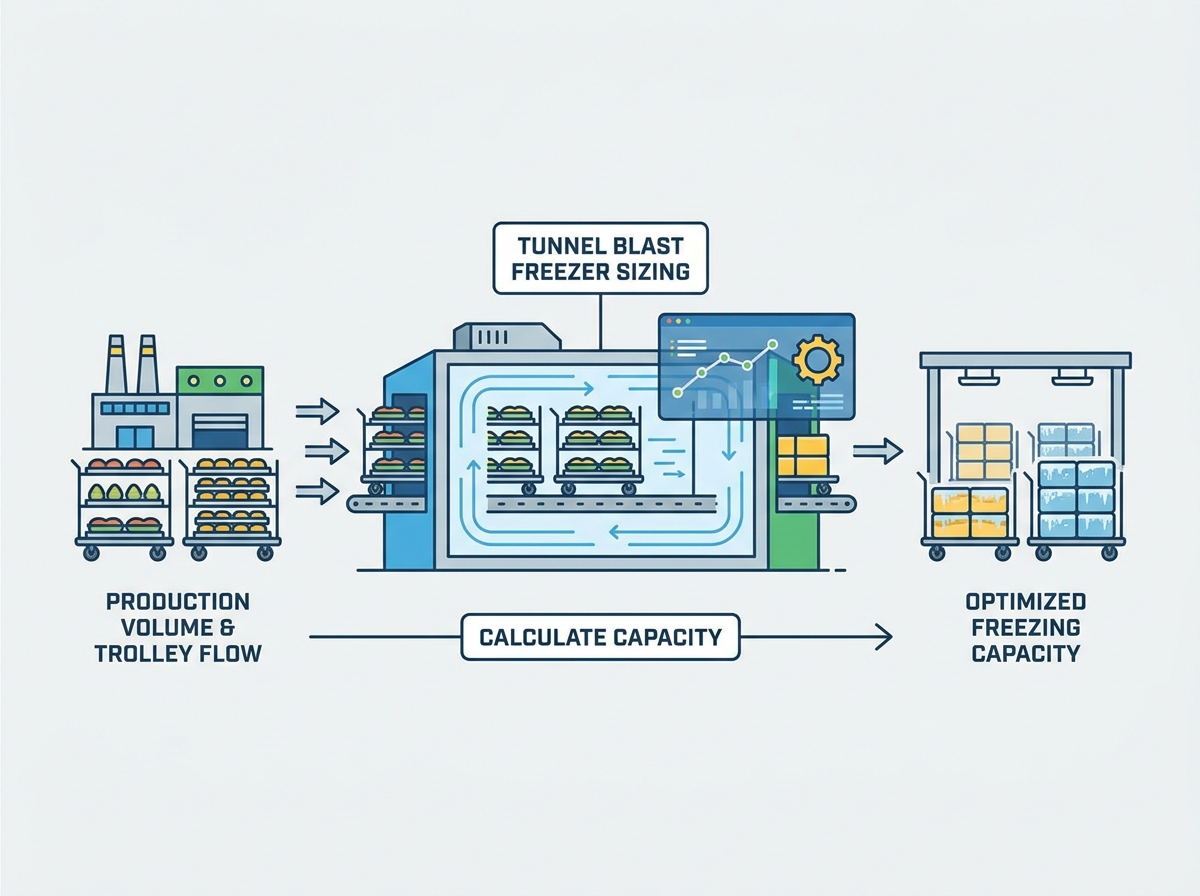

Accurate capacity planning starts with defining your hourly output targets. You must calculate the required capacity based on the total mass of product moving through the facility. The formulaic approach involves dividing your total daily production target by the number of operational hours. This yields your baseline kilograms per hour (kg/hr). Relying solely on this average figure is a common engineering mistake that leads to undersized equipment.
You must carefully analyze load balancing across your entire shift. Peak production loads often exceed average daily loads significantly. If a facility processes 10,000 kg over a 10-hour shift, the average is 1,000 kg/hr. Batch deliveries from the cooking line might push peak loads to 1,800 kg/hr during specific windows. You must engineer the system for maximum throughput. Designing for peak capacity prevents production backups on the factory floor. It also avoids constant short-cycling of the refrigeration compressors during lower volume periods, which degrades equipment lifespan.
Consider the staging area before the freezer. If your upstream process delivers product in large batches every 45 minutes, the freezer must absorb that entire thermal load instantly. You cannot average that load over the hour. The evaporator coils and fans must be sized to handle the immediate heat rejection required when a fresh batch of hot product enters the chamber.
Refrigeration load depends entirely on the thermal characteristics of the food you are processing. You must calculate the specific heat capacity above and below freezing. You also need to account for the latent heat of freezing and total water content. The entry temperature of the product and the target core exit temperature dictate the overall refrigeration load. This load is typically expressed in kilowatts (kW) or Tons of Refrigeration (TR).
Sizing requirements diverge sharply based on product type. Delicate, rapid-freeze items like mochi ice cream require hyper-precise temperature control. They need high surface-velocity airflow to prevent ice crystal formation and maintain texture. Dense products like block-frozen seafood or thick meat cuts require longer dwell times. They demand higher latent heat extraction profiles to freeze the core completely.
Product Type |
Water Content (%) |
Freezing Point (°C) |
Latent Heat (kJ/kg) |
Typical Dwell Time |
|---|---|---|---|---|
Beef (Lean) |
71% |
-2.2 |
238 |
4 - 6 Hours |
Poultry |
74% |
-2.8 |
247 |
3 - 5 Hours |
Fish (White) |
82% |
-2.2 |
274 |
2 - 4 Hours |
Bakery Dough |
40% |
-3.5 |
134 |
45 - 90 Minutes |
You must tailor the evaporator coil capacity to match these exact product profiles. A system designed for bakery dough will fail miserably if repurposed for freezing 25kg blocks of fish. The latent heat load of the fish will overwhelm the coils, leading to extended freeze times and potential spoilage.
The physical dimensions of your dollies directly impact internal volume requirements. You must measure the height, width, and depth of the trolleys. Tray spacing is equally critical. These physical dimensions dictate how many trolleys can fit inside the insulated enclosure. They also determine the total freezing time required for the batch.
Tray loading density restricts or facilitates airflow. Tightly packed trays increase resistance. High permeability allows cold air to penetrate the product layers efficiently. If tray-to-tray clearance is too narrow, the air will find the path of least resistance. It will bypass the product entirely, flowing over the top or around the sides of the trolley.
You must balance maximum tray capacity with adequate spacing for optimal air velocity. We recommend a minimum of 50mm clearance between the top of the product and the bottom of the tray above it. This ensures sufficient air volume can pass over the product surface to break the thermal boundary layer and accelerate heat transfer.
Calculating the total tunnel length requires a straightforward linear footprint formula. You multiply the trolley depth by the number of trolleys required inside the tunnel at any given time. The number of trolleys depends on your target dwell time and production rate. If your process requires a two-hour dwell time and you load one trolley every ten minutes, you need space for twelve trolleys simultaneously.
Industry sizing benchmarks provide a helpful spatial reference. A typical heavy-duty industrial blast freezer designed for 15 to 18 tons per day requires a substantial footprint. You should expect an insulated tunnel footprint of approximately 10 meters in length, 4.8 meters in width, and 3.5 meters in height. These dimensions accommodate the trolleys, evaporator coils, fans, and necessary internal clearances.
Always add a buffer to your length calculations. If your math dictates exactly 10 trolleys, size the tunnel for 11 or 12. This provides operational flexibility if a batch requires slightly more dwell time due to higher entry temperatures or if you need to increase production speed temporarily.
Engineering tolerances between the trolleys and the insulated tunnel walls are critical. You must define these clearances to prevent air bypass. Air naturally takes the path of least resistance. If there is too much clearance around the trolley, cold air will flow around the product rather than through it. This inefficiency drastically increases freezing times and wastes fan energy.
Too little clearance restricts airflow and chokes the fans. Tightly packed trolley configurations increase static pressure within the tunnel. High static pressure requires specialized fan selection. You must specify high-pressure axial fans capable of pushing air through dense product loads without losing velocity.
Measure the exact exterior dimensions of your fully loaded trolleys.
Design the tunnel width to allow no more than 100mm of clearance on either side of the trolley train.
Install physical baffles or air curtains if wider clearances are unavoidable due to facility constraints.
Ensure the ceiling height accommodates the evaporator coils while leaving enough plenum space for return air.
Facility growth requires scalable equipment. Modular drag-thru dolly systems offer a distinct strategic advantage. They allow you to increase production capacity without replacing the entire system. You can plan for phased scaling from the initial design stage, preserving your initial capital investment.
Pre-assembled factory modules can be added to the linear footprint later. You can easily expand a 3-meter tunnel to a 6-meter or 9+ meter freezing length. This modular length expansion doubles or triples your capacity. It causes minimal disruption to the existing facility envelope. You avoid major construction projects and extended production downtime.
When specifying a modular system, ensure the refrigeration pipework and electrical headers are sized for the future expansion. Installing oversized headers initially costs slightly more but saves massive retrofitting expenses when you add the next tunnel module.
The internal components of the tunnel dictate its performance. You must evaluate manufacturer specifications for evaporator coils carefully. High-efficiency fans housed within the insulated tunnel must match the coil capacity. The integration of coils and fans determines how effectively heat is removed from the product zone.
Achieving uniform airflow velocity is paramount. You need high-velocity, uniform horizontal cross-flow airflow across all tray levels. This eliminates thermal pockets inside the tunnel. Consistent airflow ensures uniform freeze times from the top tray down to the bottom tray. Uneven airflow leads to rejected product and inconsistent quality.
Fan placement dictates the airflow pattern. Fans positioned to blow directly across the short axis of the trolleys provide the best penetration. You must ensure the fans generate enough static pressure to overcome the resistance of the loaded trays. Variable frequency drives (VFDs) on the fans allow you to adjust airflow based on the specific product being frozen.
Continuous operation generates moisture. Product moisture loss and ambient humidity cause frost accumulation on evaporator coils. This frost acts as an insulator. It reduces the cooling capacity of the coils and restricts airflow. You must implement effective moisture management strategies to maintain efficiency.
You must compare different defrost systems to maintain production uptime. Continuous defrost options, sequential defrosting, and hot gas defrost systems all serve different operational needs. Hot gas defrost is highly efficient for trolley-based setups. It quickly melts frost from the coils, allowing the system to return to peak freezing capacity rapidly.
Defrost Type |
Speed |
Energy Efficiency |
Best Application |
|---|---|---|---|
Electric Defrost |
Slow |
Low |
Small, batch operations |
Hot Gas Defrost |
Fast |
High |
Large industrial tunnels |
Water Defrost |
Medium |
Medium |
Facilities with abundant water |
Sequential Defrost |
Continuous |
High |
24/7 continuous production |
If your facility runs 24/7, sequential defrosting is mandatory. This involves splitting the evaporator coils into multiple sections. One section defrosts while the others continue to freeze the product. This prevents the need to shut down the entire tunnel for a defrost cycle.
The internal components must communicate flawlessly with the external refrigeration plant. You must match the tunnel blast freezer’s internal evaporator capacity with the external compressor rack. Thermal load coupling ensures the compressors can handle the heat extracted by the evaporators without dropping suction pressure.
The system must be engineered for peak load handling. A massive pull-down load occurs immediately after hot or ambient-temperature trolleys roll into the tunnel. The compressor rack must have the capacity to absorb this sudden heat spike. If the compressors are undersized, the tunnel temperature will rise, ruining the freeze profile and potentially violating food safety regulations.
We recommend using multi-compressor racks with capacity control. This allows the system to ramp up to 100% capacity during peak loading and step down during holding periods. This matches the refrigeration output to the actual thermal load, saving significant energy.
Different production lines require different freezing technologies. Trolley-based systems outperform continuous belts in specific use cases. They offer unmatched flexibility for variable product sizes. Fragile products like mochi ice cream benefit from the stable resting environment of a tray. Multi-SKU facilities rely on trolleys to switch products quickly without adjusting belt speeds or clearing the entire line.
Drag-thru dolly tunnels excel in batch-continuous hybrid workflows. They bridge the gap between static batch blast cells and fully continuous conveyor lines. You can load trolleys continuously, pushing them through the tunnel at a controlled pace. This provides the high throughput of a continuous system with the flexibility of a batch process.
If your facility already utilizes rack-based workflows for cooking or cooling, a trolley tunnel integrates seamlessly. You simply roll the existing racks directly into the freezer. This eliminates the labor required to transfer product from racks to a conveyor belt.
Equipment selection involves significant financial and spatial trade-offs. You must compare the linear footprint of an air blast tunnel freezer against the vertical footprint of a spiral freezer. Spiral freezers utilize vertical space, making them suitable for facilities with small floor plans but high ceilings. Tunnel freezers require a longer, linear footprint.
A thorough cost-benefit analysis reveals distinct advantages for drag-thru systems. They offer lower initial CapEx compared to complex spiral systems. The mechanical engineering is simpler, relying on trolleys rather than complex tensioned belts. This simplicity results in significantly lower maintenance costs over the equipment's lifespan.
Spiral freezers require constant lubrication, belt tensioning, and specialized maintenance personnel. A trolley tunnel has very few moving parts inside the freezing zone. The primary maintenance involves inspecting the fans and cleaning the evaporator coils. This drastically reduces your ongoing operational expenses.
Designing a system strictly for average production is a dangerous gamble. You must address the risk of underestimating peak seasonal loads. Many food processors experience massive volume spikes during holidays or harvest seasons. If your freezer cannot handle these peaks, you will lose valuable product and miss critical delivery deadlines.
We recommend adding a 15 to 20 percent safety buffer to your total refrigeration capacity. This buffer zone handles seasonal production spikes effortlessly. It also accommodates raw material temperature variations during hot summer months when product enters the facility warmer than usual. Furthermore, it provides breathing room for future product line additions without requiring immediate equipment upgrades.
This safety buffer also accounts for the inevitable degradation of equipment performance over time. As coils age and minor frost builds up between defrost cycles, the system loses a small percentage of its efficiency. The buffer ensures you still meet your freezing targets even when the equipment is not running at absolute peak condition.
Heavy industrial installations demand rigorous infrastructure checks. You must evaluate your facility's structural limits before installing a massive insulated enclosure. Sub-floor ventilation and under-floor heating are critical requirements. They prevent frost heave, which occurs when the ground beneath the freezer freezes and expands, destroying the concrete slab and compromising the building's structural integrity.
Drainage and utilities require careful planning. You must ensure adequate floor drainage to handle defrost meltwater. The electrical service must be sufficient to run high-draw evaporator fans and the external compressor systems. Upgrading facility power after the equipment arrives is a costly and time-consuming error.
Check your roof structure if you plan to mount the compressor rack or condensers above the freezer. The steelwork must support the significant weight and vibration of the refrigeration plant. Consult a structural engineer early in the planning phase to avoid costly retrofits.
On-site assembly carries significant operational risks. "Stick-built" installations require contractors to build the insulated enclosure and pipe the refrigeration on your factory floor. This process causes extended field downtime. It disrupts your existing production lines and introduces the risk of on-site fabrication errors, leaks, and contamination.
Specifying pre-assembled modules offers a massive advantage. You should source units that are fully pre-assembled, piped, wired, and factory-tested before shipping. This approach dramatically reduces on-site installation downtime. It minimizes integration risks and ensures the equipment performs exactly as specified from day one.
Request the factory testing documentation before accepting delivery. The manufacturer should provide data proving the system achieved the required pull-down times and maintained the target temperatures under load. This documentation is your guarantee that the system will perform in your facility.
Conduct a comprehensive site utility audit to verify electrical and drainage capacities before finalizing equipment specifications.
Run physical product freezing tests to determine exact dwell times for your specific SKUs to avoid undersizing the tunnel length.
Request detailed layout and technical drawings from shortlisted vendors to confirm the equipment fits within your facility constraints.
Calculate your peak production loads and add a 20 percent safety buffer to the final refrigeration capacity requirements.
Contact your vendor through their tunnel blast freezer inquiry page to demand custom heat load calculations and airflow modeling.
A: You calculate the thermal load using the product mass flow rate, specific heat above and below freezing, latent heat of fusion, and the temperature delta. You must add a 10-20% safety margin to account for trolley mass, fan heat, and wall transmission losses.
A: Dwell times vary widely. Small, delicate items like mochi ice cream may take 20 to 45 minutes. Thick, dense meat or seafood cartons can require several hours. The exact time depends on airflow velocity, product density, and tray spacing.
A: Yes, provided a modular drag-thru design is selected. Operators can add standardized tunnel modules, expanding from 3 meters to 6 or 9+ meters. This increases throughput without replacing the entire system.
A: A realistic baseline dimension is roughly 10 meters in length by 4.8 meters in width and 3.5 meters in height. Exact dimensions will depend on your specific trolley configuration and the internal clearances required for optimal airflow.
A: Spiral freezers use a vertical, continuous-belt design that saves floor space, making them best for high-volume, single-product lines. Tunnel blast freezers use a linear, batch-continuous layout that easily accommodates trolleys and highly variable product sizes.
A: Tray material, perforation levels, trolley alignment, and vertical tray spacing directly impact the velocity of air moving across the product. Proper design ensures cold air penetrates the product layers, reducing freeze times and lowering energy consumption.
