Superior IQF Performance: High-velocity low-temperature airflow (-30°C to -40°C) suspends products uniformly, ensuring no clumping or sticking and achieving true monomer separation. Each piece is fully exposed to cold air, rapidly passing through the maximum ice crystal formation zone to minimize cell damage.
Max Freshness & Quality: 360° three-dimensional rapid cooling preserves natural color, texture, and nutrients. Thaw loss is significantly reduced, maintaining the original juiciness and elasticity of fruits and vegetables.
Food-Grade Safety & Hygiene: Constructed from food-grade SUS304 stainless steel for the entire contact surface and frame. The mesh belt is easy to disassemble and clean, meeting global food safety standards and reducing cross-contamination risks.
Energy Efficiency & Stability: Advanced airflow control and high-efficiency evaporator reduce energy consumption by 15–25% compared to traditional systems. Variable frequency fans and adjustable air volume ensure stable performance across diverse product types.
Flexible Customization: Tailor belt width, airflow rate, freezing time, and system configuration to fit specific product shapes, sizes, and production layouts. Optional accessories include CIP cleaning systems and pre-treatment lines.
Diced fruits/vegetables, French fries, shrimp, peas, berries, etc food products. Suitable for food processing plants, cold chain logistics, and OEM/ODM projects requiring high efficiency and stable quality.
Technical parameter:
Mode | FSLD500 | FSLD1000 | FSLD1500 | FSLD2000 | FSLD3000 |
By ± 10% (kg / hr) | 500 | 1000 | 1500 | 2000 | 3000 |
Cooling capacity (kw / h) | 90 | 170 | 255 | 320 | 480 |
Freezer compartment size | 7× 4.0 × 2.9 | 9 * 4.0 *2.9 | 12 × 4.2 × 2.9 | 15 × 4.2 × 2.9 | 19× 4.2 × 2.9 |
physical dimension | 8 × 4.0 × 2.9 | 11 × 4.0 × 2.9 | 14 × 4.2 × 2.9 | 17 × 4.2 × 2.9 | 21× 4.2 × 2.9 |
Power (Kw) | 19 | 35.2 | 49.2 | 61.2 | 78 |
Feed temperature | + 15 ℃ | + 15 ℃ | + 15 ℃ | + 15 ℃ | + 15 ℃ |
Outlet temperature | -18 ℃ | -18 ℃ | -18 ℃ | -18 ℃ | -18 ℃ |
The temperature cycle | -35 ± 2 ℃ | -35 ± 2 ℃ | -35 ± 2 ℃ | -35 ± 2 ℃ | -35 ± 2 ℃ |
Frozen Time (minutes) | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Refrigerants | R717 / R404A | R404A / R717 | R404A / R717 | R404A / R717 | R404A / R717 |

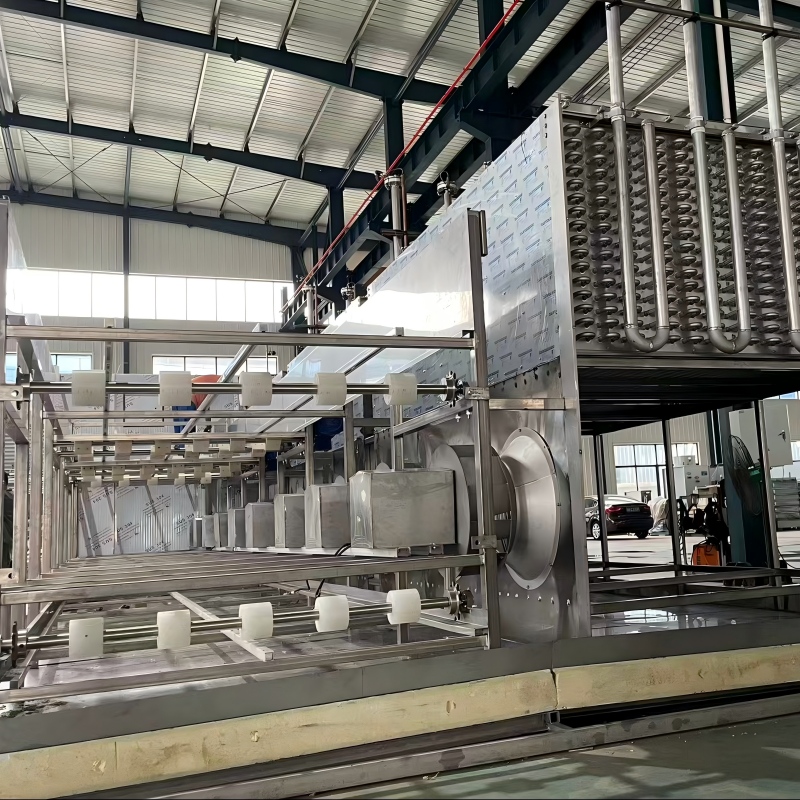

Fluidized IQF freezer pictures:
