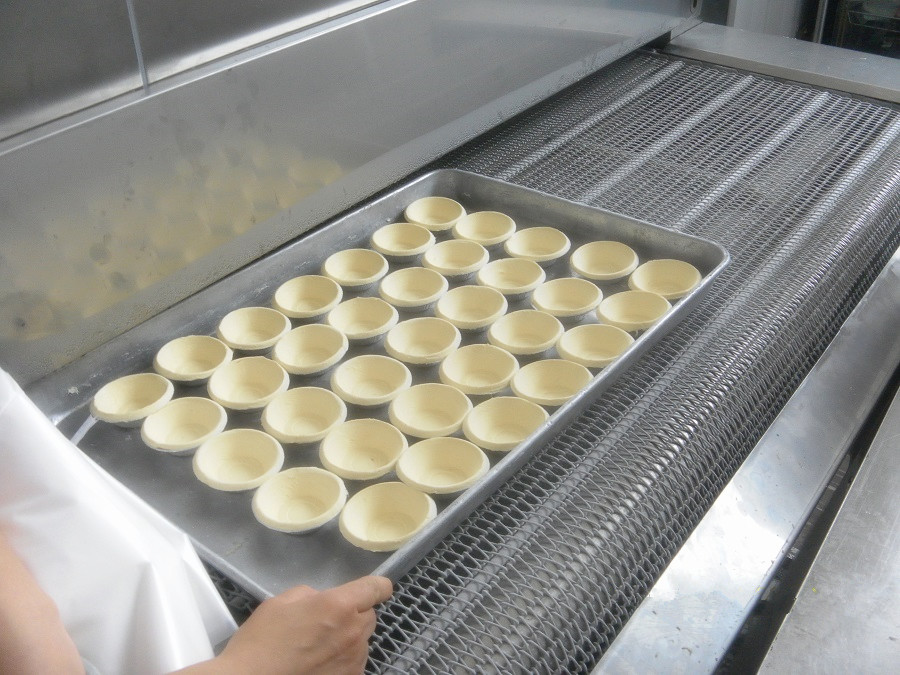

Tunnel freezing machine is widely used in frozen strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced fish, meat dumplings, meat and chicken sub.
With a two-speed motor, expanding the use of energy saving.
Depending on the frozen product into left and right cross-blasting fan, air mixing, and the top-blowing, the refrigeration, to achieve the best quality and efficiency
2.Library stainless steel plate using double sandwich polyurethane insulation board, good insulation properties, the inner member made of stainless steel SUS304, easy to clean, HACCP requirements.
3. The stainless steel mesh belt, smooth surfaces, easy to clean.
4. Use water cream to ensure hygiene.
5.Invter infinitely adjustable speed control is realized, frozen goods freeze time is adjustable, it can be applied to processing of frozen goods.
the FSW200Tunnel freezer parameters as follow:
frozen product :frozen shrimp
capacity: 200kg/h
cooling capacity: 35kw (±40℃）
refrigerant :R404A/R507A
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)
the spiral freezer body size: 10*1.8*2.2m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric elements
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 1000mm ,according to clients choice.
the compressor unit choose italy frascold or Germany Bitzer screwcompressor 30hp 1sets
