The profitability of frozen food manufacturing hinges on continuous throughput. Even minor bottlenecks in thermal processing or material handling compound into massive yield losses and product degradation. Disjointed integration between pre-processing, the freezing core, and packaging stages frequently results in product clumping, mechanical damage, thermal inefficiency, and excessive downtime for defrosting. Designing an optimal layout requires evaluating the entire system holistically. Plant engineers must synchronize feeding mechanisms, select the appropriate freezing technology, and integrate packaging systems to maximize overall equipment effectiveness. Proper alignment preserves product quality from the moment raw materials enter the facility until they reach the final bag. We will break down the technical evaluation criteria for building a high-yield layout, focusing on mechanical flow, thermal zoning, and continuous operation.
Synchronization is Critical: Matching the feed rate of raw materials to the thermal capacity of the freezing unit prevents overloading and ensures individual quick freezing without agglomeration.
Technology Must Match the Product: The choice between fluidized bed, spiral, or tunnel freezers dictates the physical layout and depends strictly on product characteristics (e.g., high-moisture fruits vs. dense proteins).
Quality Preservation Starts Upstream: Proper integration of washing, cutting, and blanching directly impacts the IQF machine's ability to lock in vibrant colors, cellular integrity, and nutritional value.
Environmental Control Drives Efficiency: Proper zoning between wet processing (washing/blanching), the freezing core, and dry packaging prevents frost migration and reduces energy consumption.

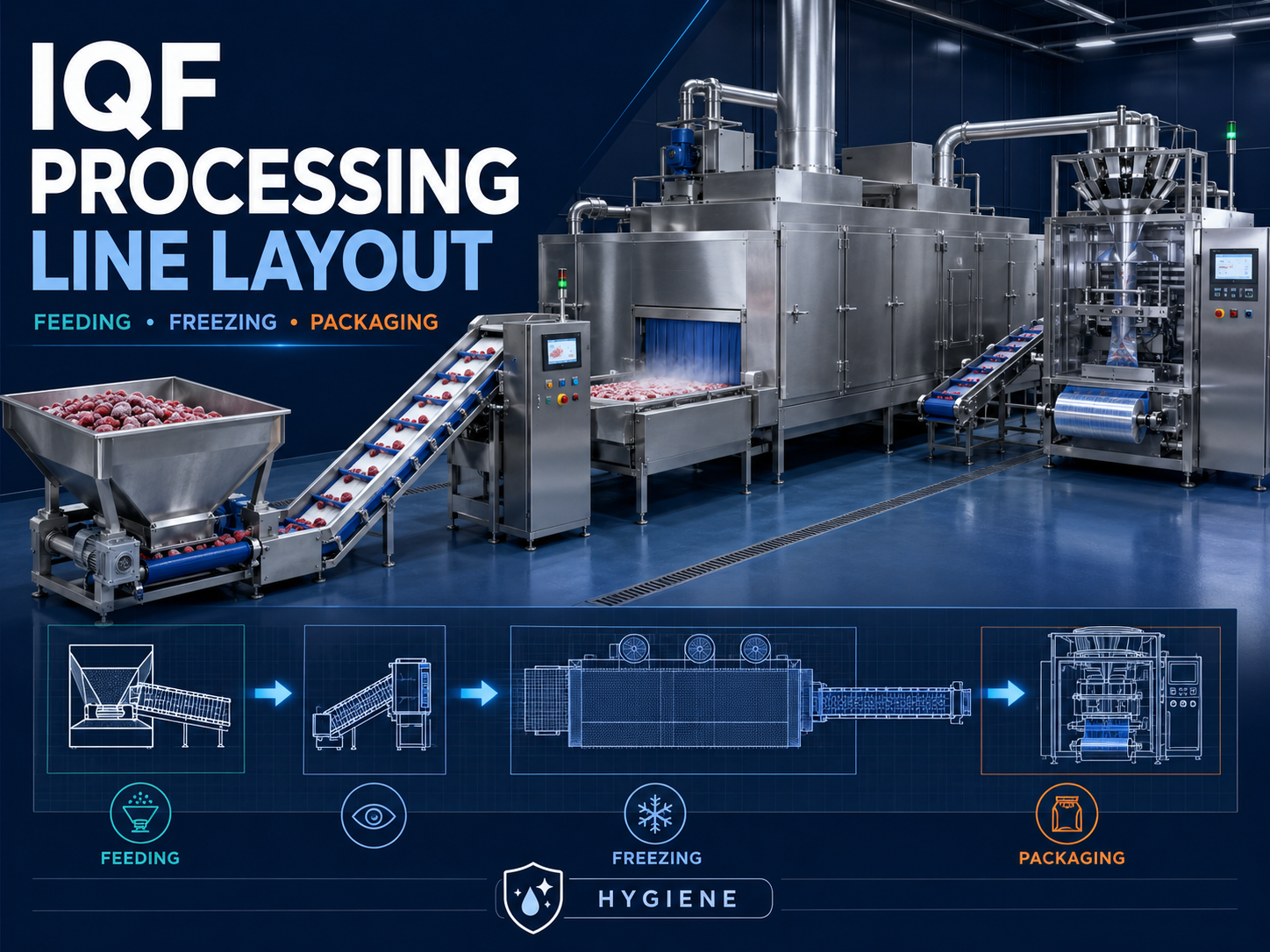

A well-engineered facility operates as a single unified system. You cannot treat preparation, freezing, and packaging as isolated departments. Material must flow seamlessly between these stages to maintain thermal consistency. Any delay on the conveyor belt allows ambient heat to warm the product. This compromises the final frozen quality and increases the energy load on the refrigeration system. We design layouts to keep the product moving constantly, minimizing the time it spends exposed to ambient factory temperatures.
Preparation integration forms the foundation of your production layout. Synchronizing washing, precision cutting, and blanching stages ensures a continuous, uninterrupted flow of raw material. If the cutting machines operate faster than the blancher can process, product pools on the belt. This pooling leads to uneven heat treatment and subsequent freezing issues. You must calibrate conveyor speeds across all pre-processing equipment to maintain a steady single-layer flow. We often see facilities fail because they install a massive blancher but feed it with undersized flume washers, creating an immediate choke point.
Evaluating dewatering equipment is a mandatory step before the product enters the freezer. You must choose between air knives and vibratory shakers based on your specific raw material. Air knives effectively strip surface moisture from smooth products like diced carrots or apples by blasting high-velocity air across the belt. Vibratory shakers work better for leafy greens or complex shapes that trap water in crevices. Removing surface moisture prevents frost buildup on the evaporator coils. It also minimizes drip loss when the consumer eventually thaws the food. We recommend installing a secondary dewatering belt with high-velocity blowers right before the freezer infeed to guarantee a dry surface.
Infeed synchronization directly dictates the success of the freezing stage. Utilizing variable frequency drives (VFDs) on vibratory feeders ensures an even product spread across the freezer belt. A clumped infeed forces the freezing system to work harder. It creates warm spots where cold air cannot penetrate the product mass. VFDs allow operators to fine-tune the vibration amplitude on the fly. This guarantees a uniform, single-layer distribution right before the product enters the freezing enclosure, which is the absolute baseline requirement for achieving individual separation.
Selecting the right thermal technology defines your entire facility footprint. You must match the mechanical action of the freezer to the physical properties of your food products. Integrating a high-performance iqf processing line requires understanding how air interacts with different product shapes, moisture contents, and weights.
Fluidized Bed Freezers: These systems work best for small, uniform products like peas, diced vegetables, and berries. High-velocity cold air blows upward through the conveyor belt. This air lifts and suspends the product, freezing it instantly while it floats. When evaluating these systems, focus on aerodynamics, fan speed control, and bed agitation mechanisms. Proper fan control prevents lightweight products from blowing off the belt into the drain pans.
Spiral Freezers: These units are optimal for larger or delicate items like meat patties, bakery goods, and whole fruits. They utilize a continuous belt that spirals upward or downward around a central rotating drum. Evaluation criteria should include belt tensioning systems, vertical footprint utilization, and airflow direction. Horizontal airflow works well for packaged goods. Vertical airflow provides faster heat transfer for raw proteins.
Tunnel Freezers: These systems are perfectly suited for flat or tray-based freezing. They use a straight-line conveyor passing through an insulated enclosure. Evaluation criteria focus on modular expansion capabilities and impingement technology. Impingement uses high-velocity air jets to blast away the thermal boundary layer surrounding the product. This drastically reduces freezing times for thin items like fish fillets or hamburger patties.
The moment product exits the freezer, it becomes highly susceptible to mechanical damage. Transfer mechanisms must prioritize gentle handling. You must minimize drop heights between conveyors. Utilizing specialized intralox belting prevents the breakage of brittle, freshly frozen products. A drop of just a few inches can shatter frozen raspberries or snap the edges off frozen pastry dough. Layout designs must incorporate soft-drop chutes and gradual elevation changes. We always specify dimpled stainless steel chutes to reduce surface friction and prevent product bruising during the transition to the packaging hall.
Packaging versatility requires a layout that can seamlessly switch between different output formats. Your facility may need to fill commercial bulk totes in the morning and retail-ready polybags in the afternoon. Diverter gates and bypass conveyors allow you to route frozen goods to different packaging stations without stopping the main production flow. This flexibility maximizes daily throughput and reduces changeover downtime. Designing a mezzanine level for the weighers allows gravity to do the work of feeding the bagging machines below.
Cold-room synchronization presents unique environmental challenges. Integrating multi-head weighers and vertical form fill seal (VFFS) machines requires careful planning. These machines must operate efficiently in sub-zero environments. Condensation on electronic components or weighing buckets disrupts accuracy. You must specify packaging equipment with heated enclosures for sensitive electronics. Additionally, the ambient air in the packaging room must remain strictly dehumidified to prevent frost from forming on the sealing jaws, which causes weak bag seals and product spoilage.
The physical arrangement of your equipment dictates operational flow, maintenance access, and sanitation efficiency. You must design the floor plan to eliminate cross-contamination risks and minimize the distance product travels between thermal zones. A poorly planned layout forces you to use excessively long conveyors, which increases the risk of product warming and mechanical failure.
Linear layouts represent the gold standard for high-volume, single-product facilities. They require ample floor space but offer the simplest product flow. A straight line reduces the number of transfer points. Fewer transfer points mean fewer opportunities for product damage or mechanical failure. Maintenance teams can easily access both sides of the equipment. Sanitation crews can wash down the line efficiently from start to finish. We always push for linear designs when building greenfield facilities because they simplify utility routing and provide clear lines of sight for operators.
U-Shape or folded layouts become necessary for facilities with strict footprint constraints. When space is limited, you must bend the production line. The evaluation focus here shifts to managing the complexity of 90-degree or 180-degree conveyor transfers. You must engineer these transition points carefully to prevent product from piling up on the outside radius of the curve. Active driven rollers and specialized curve belts help maintain product orientation and spacing through tight turns. You also need to ensure that maintenance personnel can safely access the inside of the U-shape without crawling under active conveyors.
A successful layout demands strict physical separation between different environmental zones. The preparation zone involves washing, blanching, and cooling. This creates a "wet" environment with high humidity and ambient heat. The freezing and packaging zones must remain strictly "dry" and cold. If humid air from the blancher migrates into the freezing room, it immediately turns into frost. This frost coats evaporator coils, blinds sensors, and creates slip hazards on the floor.
Implementing airlocks and physical partition walls separates these conflicting environments. You must install dehumidification systems in the transition areas. Maintaining positive air pressure in the dry packaging zone pushes ambient moisture back toward the wet processing area. This prevents humid air from ever entering the freezing enclosure. Proper HVAC balancing is just as important as the mechanical layout of the conveyors. We use desiccant dehumidifiers in the packaging hall to keep the dew point well below freezing, ensuring the room stays completely dry.
Equipment placement must align with your facility's underlying infrastructure. Strategic placement of floor drainage and water supply lines supports heavy washdown requirements. Pre-processing and sanitation stages consume massive volumes of water. Floors must slope aggressively toward high-capacity trench drains. Placing heavy water-use equipment far from main drain lines leads to standing water, which fosters bacterial growth and violates food safety standards. We specify a minimum pitch of 1/4 inch per foot for all washdown areas to guarantee rapid drainage.
Routing refrigeration piping requires careful engineering. Whether you use ammonia or carbon dioxide, the piping between the plant's central engine room and the freezing core must be as short as possible. Long pipe runs create pressure drops. Pressure drops reduce the thermodynamic efficiency of the refrigerant, forcing compressors to work harder. Layout planning must position the freezing equipment in close proximity to the refrigeration valve stations. We also elevate all piping on sanitary racks to eliminate catch points for debris and make floor cleaning easier.
Smart facility design accounts for future growth. Designing the initial layout with modular expansion in mind saves significant downtime later. You should leave physical floor space for additional tunnel modules or secondary packaging lines. Installing oversized utility headers during the initial build allows you to plug in new equipment without repiping the entire room. It costs significantly less to install a larger water main on day one than to tear up the concrete floor five years later.
Evaluating the vertical footprint helps maximize throughput per square foot in constrained facilities. When horizontal space runs out, you must build upward. Leveraging spiral freezers allows you to pack hundreds of feet of active conveyor belt into a very small footprint. You can also utilize vertical bucket elevators to move product to mezzanine-level multi-head weighers, freeing up valuable ground-floor space for forklift traffic and staging.
Selecting the core freezing unit requires matching mechanical features to your specific production goals. You must look past generic specifications and evaluate how the equipment handles your exact raw materials under continuous load. A machine that works perfectly for diced carrots might fail completely when processing sticky marinated chicken.
The primary goal of any freezing system is to preserve cellular integrity. You must assess the equipment's ability to rapidly pass the maximum crystallization zone. When food freezes slowly, large ice crystals form. These large crystals puncture cell walls. Upon thawing, the damaged cells leak moisture, resulting in a mushy texture and significant drip loss. Rapid freezing creates microscopic ice crystals that leave cell structures intact, locking in vibrant colors and firm textures.
Evaluating crust-freezing capabilities is essential for high-moisture products. A properly designed iqf equipment setup applies an immediate, intense blast of cold air to the product surface. This instantly freezes the outer layer, creating a protective shell. This shell prevents internal moisture from evaporating into the freezer environment. Minimizing dehydration during the freezing process directly improves your final yield weight. We have seen yield improvements of up to 4% simply by optimizing the crust-freezing zone to operate at -40°C with maximum fan velocity.
Handling high-moisture or sticky products requires advanced aerodynamics. Sliced fruits, marinated meats, and cooked pasta naturally want to stick together. If they freeze in a clump, you lose the individual quick freezing benefit. You must assess how the equipment manages product separation during the first few minutes of thermal transfer.
Evaluating the effectiveness of mechanical pulsators and dual-zone freezing guarantees individual separation. Mechanical pulsators tap or shake the belt at calculated intervals, physically breaking apart products before they freeze solid. Dual-zone systems use two distinct conveyor belts. The first belt runs fast to crust-freeze and separate the items. The product then drops onto a slower second belt for deep core freezing. This drop physically breaks any remaining ice bonds between pieces. We rely heavily on dual-belt systems when processing difficult items like sliced strawberries or diced tomatoes.
Thermal efficiency drives operational sustainability. You must compare the performance of different refrigerants based on your facility's infrastructure. Ammonia provides exceptional thermodynamic efficiency but requires strict safety protocols due to toxicity. Carbon dioxide operates safely and effectively at very low temperatures, making it ideal for modern freezing applications. Synthetic refrigerants offer easier handling but face increasing environmental regulations.
Evaluating evaporator coil design and fan motor efficiency reveals the true power consumption of the system. Look for coils with variable fin spacing. Wider spacing on the entry side prevents rapid frost bridging, while tighter spacing on the exit side maximizes heat transfer. High-efficiency EC (Electronically Commutated) fan motors consume significantly less electricity than traditional AC motors. They also generate less waste heat inside the freezing enclosure, which means the compressors do not have to work as hard to maintain the target temperature.
Comparison of Freezing Technologies | |||
Freezer Type | Ideal Product Types | Footprint Profile | Aerodynamic Focus |
|---|---|---|---|
Fluidized Bed | Peas, berries, diced vegetables | Medium (Linear) | High-velocity upward airflow for suspension |
Spiral | Meat patties, bakery, whole poultry | Small (Vertical) | Horizontal or vertical airflow over tiers |
Tunnel | Fish fillets, tray-baked goods | Large (Linear) | Impingement jets for rapid surface freezing |
Sanitation downtime eats directly into production schedules. Assessing the hygienic design of the equipment ensures rapid and effective cleaning. Look for sloped surfaces that prevent water pooling. Fully welded enclosures eliminate crevices where bacteria can hide. The internal layout must provide clear accessibility for manual inspection. Operators should be able to reach all internal areas without requiring specialized tools or confined space entry permits.
Evaluating automated Clean-in-Place (CIP) systems is mandatory for modern facilities. A well-designed iqf machine features integrated spray nozzles that cover the entire belt, coil, and floor area. You must evaluate the system's water consumption, chemical dosing accuracy, and overall turnaround time. Faster, more effective cleaning cycles allow you to switch between different product lines quickly while maintaining strict food safety compliance. We always check the nozzle spray patterns during commissioning to ensure 100% coverage of the evaporator block, as missed spots lead to rapid bacterial growth.
Even with premium equipment, poor integration creates severe operational risks. Anticipating these bottlenecks during the layout design phase prevents costly retrofits after installation. You must engineer the line to handle worst-case scenarios, such as upstream surges or downstream packaging jams.
The most common risk occurs when upstream processing outpaces freezing capacity. If the cutting and blanching lines push 5,000 pounds per hour, but the freezer can only handle 4,000 pounds, product pools on the infeed belt. This pooling leads to thermal overload inside the freezer. The system cannot remove heat fast enough, resulting in soft, clumped products that fail quality control.
Mitigating this risk requires implementing centralized Programmable Logic Controller (PLC) systems. The PLC monitors the entire line via EtherNet/IP or similar industrial networks. It automatically adjusts upstream infeed rates based on the internal temperature and belt speed of the freezer. If the freezer temperature starts to rise, the PLC slows down the vibratory feeders. This closed-loop communication ensures the thermal load never exceeds the refrigeration capacity, maintaining a steady state of operation.
Excessive frost on evaporator coils represents a massive operational risk. Moisture from the product and ambient air freezes onto the cold coils. This ice acts as an insulator, drastically reducing heat transfer efficiency. As frost builds up, freezing times increase, and core temperatures rise. Eventually, operators must shut down the entire line mid-shift to defrost the coils, killing daily throughput.
Specifying equipment with sequential defrosting capabilities mitigates this downtime. Sequential defrosting isolates specific sections of the evaporator coil. The system defrosts one section using hot gas while the rest of the coils continue to freeze the product. This technology allows continuous operation for up to 72 hours without requiring a full system shutdown. We consider this a mandatory feature for any facility running three shifts during peak harvest season.
Freshly frozen products are incredibly brittle. The transition point between the freezer outfeed and the packaging elevator poses a high risk for product degradation. If frozen berries drop two feet onto a hard stainless steel chute, they will shatter. This creates unacceptable levels of frozen dust and broken pieces, lowering the commercial grade of the final product.
Mitigating this risk requires careful engineering of all transfer points. You must utilize soft-drop chutes lined with food-grade impact-absorbing materials. Specialized intralox belting with gentle flights helps lift the product without scraping or crushing it. Ultimately, the best layout minimizes elevation changes entirely, keeping the product flowing smoothly from the freezer directly into the weighing hoppers. We design transfer points to keep the drop height under four inches whenever physically possible.
To implement a high-yield freezing layout, execute the following steps:
Conduct a comprehensive site audit to map available floor space, identify structural constraints, and measure existing utility header capacities.
Calculate your peak harvest throughput requirements and match them against the thermal capacity of your central refrigeration plant.
Request physical pilot testing with your specific raw materials to verify aerodynamic separation and crust-freezing performance before finalizing equipment specifications.
Design strict environmental zones on your floor plan to physically separate wet preparation areas from dry freezing and packaging rooms.
A: Footprint requirements vary drastically based on technology and capacity. A spiral freezer might require only 150 square feet vertically, while a high-capacity tunnel freezer could stretch over 60 feet in length. You must also account for pre-processing conveyors, packaging machinery, and necessary maintenance clearances around all equipment.
A: Preventing clumping requires a combination of upstream dewatering, synchronized infeed spreading, and mechanical agitation inside the freezer. Removing surface moisture before freezing is critical. Inside the unit, high-velocity airflow, mechanical pulsators, or dual-belt systems physically separate the product during the initial crust-freezing phase.
A: A spiral freezer uses a continuous belt winding around a central drum, ideal for large, delicate, or packaged items that require longer retention times. A fluidized bed freezer uses high-velocity upward airflow to suspend and instantly freeze small, uniform products like peas or berries in a linear footprint.
A: Dewatering removes excess surface water from washing or blanching. If this water enters the freezer, it turns into ice on the evaporator coils, reducing thermal efficiency. It also causes products to freeze together in solid blocks and increases the drip loss when consumers thaw the food.
A: Sequential defrosting allows the system to clean individual sections of the evaporator coil while the rest of the machine continues operating. This prevents the need to shut down the entire production line for mid-shift defrosting, enabling continuous runs for up to 72 hours during peak harvest seasons.
A: While possible, it is mechanically challenging. Fruits require gentle handling and specific aerodynamics to prevent clumping. Heavy proteins require longer retention times and robust belting. Facilities processing both usually install distinct freezing lines optimized for each product category to maintain high quality and throughput.
