1.Simeple structure, easy operation and long life.
2.Library stainless steel plate using double sandwich polyurethane insulation board, good insulation properties, the inner member made of stainless steel SUS304, easy to clean, HACCP requirements.
3. The stainless steel mesh belt, smooth surfaces, easy to clean.
4. Use water cream to ensure hygiene.
5.Invter infinitely adjustable speed control is realized, frozen goods freeze time is adjustable, it can be applied to processing of frozen goods.

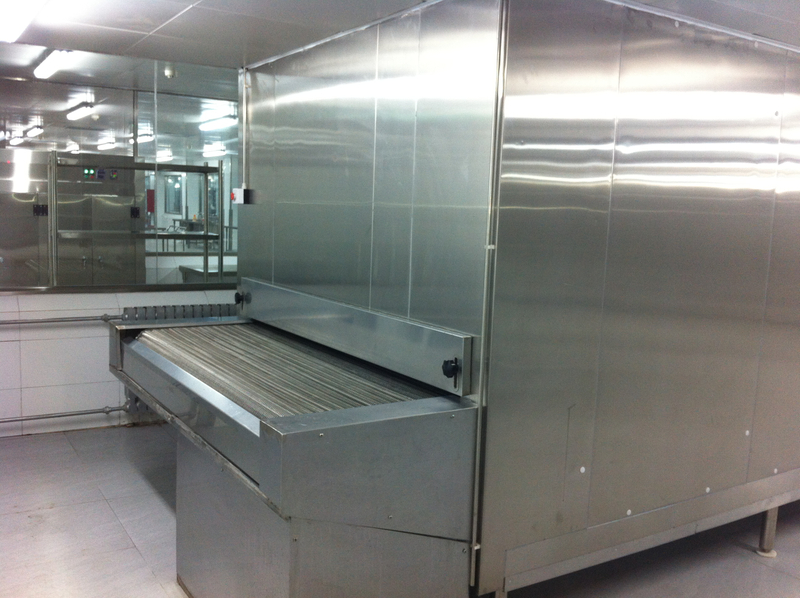

the 1000kg/h Tunnel freezer parameters as follow:
frozen product :frozen IQF shrimp
cooling capacity: 170kw (±40℃）
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)
the spiral freezer body size: 22*3*2.5m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric elements
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 2500mm ,according to clients choice.
the compressor unit choose italy frascold screw compressor 125hp 2 sets
