FYW1500
FST
FST1500

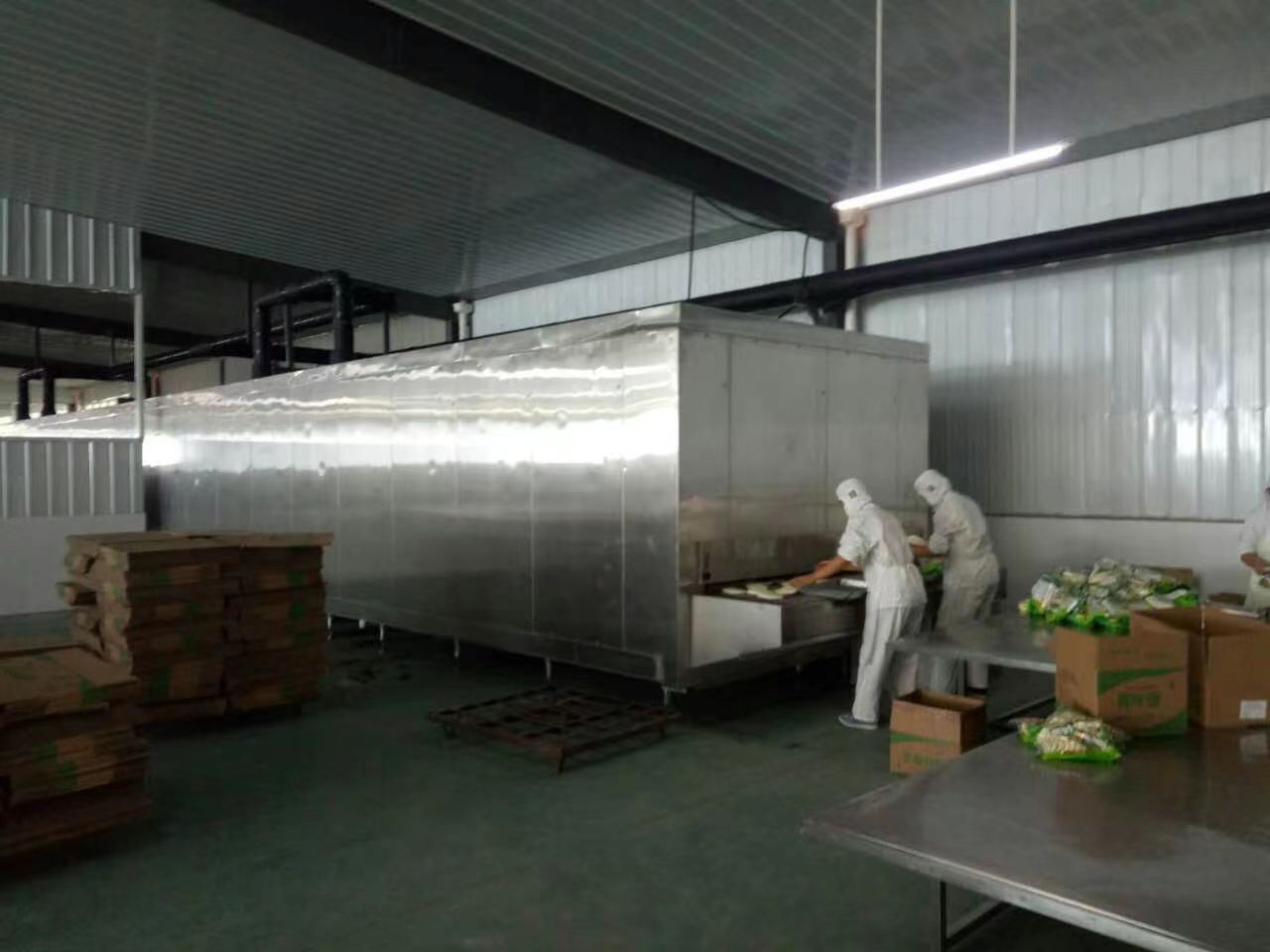

Tunnel Cooler product description
1, the client request
1. Producto a enfriar. Guacamoles
2. Tipo de empaque (bolsa, termo formado, termo sellado, etc.), Charola redonda sellada con film
3. Dimensiones del empaque. 3, 5” diámetro, 1, 2, 4” altura
4. Peso del empaque. 2.5, 7, 8, 15 oz
5. Capacidad requerida (empaques por hora, kg/hr) 3000lbs/hr con opción a aumentar velocidad 1350kg/h
6. Temperatura de entrada. 10- 14°C
7. Temperatura de salida. 0 a 2°C
3. FYW1500 TUNNEL COOLER TECHNICAL PARAMETERS
Item | FYW1500（Guacamoles） | |
Product | Guacamoles | |
Capacity | 1350kg/h | |
In/Out Temp. | +10-14℃ to 0~+2℃ | |
Cooler Temp. | -10~-15℃ | |
In/Out Time | 10-50min | |
Refrigerant | R404A | |
Consumption | 65kw | |
Cooler Container Thickness | 100mm | |
Product Height | ≤120mm | |
Belt Width | 2500mm | |
Product Input Conveyor/Output Conveyor | 700 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Cooler Power | 15.4 KW | |
Cooler Size（L*W*H） | 14000×3000×2500mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 100 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
Tunnel Cooler product description
1, the client request
1. Producto a enfriar. Guacamoles
2. Tipo de empaque (bolsa, termo formado, termo sellado, etc.), Charola redonda sellada con film
3. Dimensiones del empaque. 3, 5” diámetro, 1, 2, 4” altura
4. Peso del empaque. 2.5, 7, 8, 15 oz
5. Capacidad requerida (empaques por hora, kg/hr) 3000lbs/hr con opción a aumentar velocidad 1350kg/h
6. Temperatura de entrada. 10- 14°C
7. Temperatura de salida. 0 a 2°C
3. FYW1500 TUNNEL COOLER TECHNICAL PARAMETERS
Item | FYW1500（Guacamoles） | |
Product | Guacamoles | |
Capacity | 1350kg/h | |
In/Out Temp. | +10-14℃ to 0~+2℃ | |
Cooler Temp. | -10~-15℃ | |
In/Out Time | 10-50min | |
Refrigerant | R404A | |
Consumption | 65kw | |
Cooler Container Thickness | 100mm | |
Product Height | ≤120mm | |
Belt Width | 2500mm | |
Product Input Conveyor/Output Conveyor | 700 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Cooler Power | 15.4 KW | |
Cooler Size（L*W*H） | 14000×3000×2500mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 100 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
