The FST FCR series custom cold room storage is a professional, fully customizable refrigerated storage solution designed for commercial enterprises, industrial facilities, and logistics operators requiring reliable temperature-controlled storage. With over 10 years of specialized experience in cold room engineering and manufacturing, our cold rooms have been supplied to operators across multiple countries, delivering exceptional energy efficiency, stable operation, and flexible installation. Supporting a wide temperature range from -40℃ to +20℃, we design every cold room to match your unique storage needs, with fully customizable dimensions, functions, and configurations. The system integrates world-renowned core components and high-performance insulation materials, suitable for everything from short-term fresh produce preservation to long-term deep freezing of goods, helping operators minimize product spoilage, reduce operational costs, and maintain strict quality control for stored items.
Air Cooled Type | Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃） |
Aluminum shelving | Customize -18 ℃ or -35℃ |
Evaporator Cooled Type | Evaporator Condenser DJS (-30~-40℃) |
Room size type
Room size | Mini | Small | Middle | Big |
volume range | 200m³ | 200~1000m³ | 1000~5000m³ | >5000m³ |
Temperature table for reference
cold storage goods | temperature range |
processing room | 10℃ |
fruit, vegetable, dry food | 0~-5℃ |
medicine, cake, pastry, chemical material | 0~-5℃ |
ice storage room | -5~-10℃ |
fish, meat storage | -18~-25℃ |
deep freezer. | -25C~-35℃ |
Compressor type and condenser
compressor type | bitzer(Germany) | Frascold (Italy) | Copeland (US) | China brand |
condenser | air cooled | water cooled | Evaporator |
Panels information
office Foam panel | 50mm thickness |
processing room 10C | 50mm/ 75mm PU |
-5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25C/ -35℃ | 150mm/200mm PU |
panel steel cover | SS, GI, aluminum etc |
Every cold room is fully tailored to your specific requirements, including custom dimensions, temperature zones, functional configurations (fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof), and layout design. We adapt the solution to your site conditions, stored goods type, and operational workflow, ensuring a perfect fit for your business.
Our cold rooms use high-density polyurethane insulation panels with excellent thermal insulation performance and flame-retardant properties, paired with airtight sealing gaskets to minimize cold air leakage. This design significantly reduces refrigeration load, cuts down energy consumption, and lowers long-term operating costs for operators.

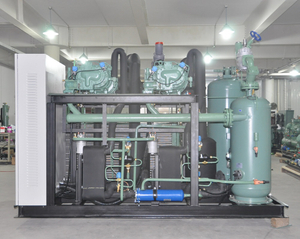

The refrigeration system uses top-tier compressors from globally recognized brands, paired with high-quality accessories from Danfoss, Schneider, and other industry leaders. This ensures stable, long-term operation even in continuous working conditions, with low failure rates and consistent temperature control to protect stored goods.
Equipped with a fully automatic PLC control system, the cold room supports real-time temperature monitoring, high and low temperature alarms, data logging, and multiple safety protections including phase protection and overload protection. It enables unattended operation, reducing manual management workload while ensuring strict compliance with storage quality standards.
The modular panel design allows for fast, convenient installation and disassembly, with minimal on-site construction work. This shortens project lead times, and the cold room can be easily relocated or reconfigured to adapt to changing business needs, maximizing the flexibility of your investment.
Our custom cold rooms serve a wide range of commercial and industrial sectors, with core applications including fresh and frozen food storage and distribution, suitable for fruits, vegetables, dairy products, beverages, meat, poultry, and seafood. They are also widely used in meat and poultry processing plants for quick-freezing and low-temperature storage, pharmaceutical and chemical industries for constant-temperature storage of sensitive materials, and retail and catering businesses for central kitchen and back-of-house cold storage. Additional applications include ice storage, processing workshops, and other temperature-controlled operational spaces.
Our cold rooms support a wide temperature range from -40℃ to +20℃, with precise temperature control customized to the specific requirements of your stored goods, from fresh produce preservation to deep freezing.
Yes, every cold room is fully customized to your site dimensions, layout, and environmental conditions. Our engineering team will design a solution that maximizes the use of your available space while meeting your storage needs.
We offer a range of compressor options, including Germany Bitzer, USA Copeland, Italy Frascold, and domestic top brands, allowing you to select the best fit for your operational needs and budget.
Panel thickness is selected based on the required storage temperature, ranging from 50mm for high-temperature processing rooms up to 200mm for -35℃ deep freezing rooms. Our technical team will recommend the optimal thickness for your specific use case.
With a professional engineering team and over 10 years of cold room design and manufacturing experience, we provide end-to-end custom cold chain storage solutions, from initial design and production to on-site installation guidance and after-sales support. Whether you need a small walk-in cooler for retail use or a large-scale cold storage warehouse for logistics operations, we can tailor a solution to your exact requirements. Contact us today to share your storage needs, and receive a free custom design and detailed quote to secure reliable temperature control for your goods.
