5.Invter infinitely adjustable speed control is realized, frozen goods freeze time is adjustable, it can be applied to processing of frozen goods.

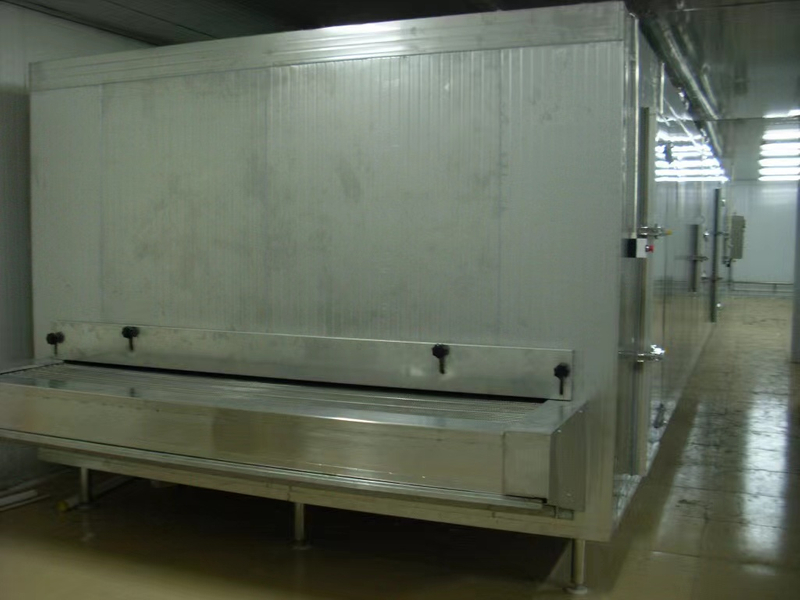

FSW1000 TUNNEL FREEZER TECHNICAL PARAMETERS
Item | FSW1000（ Frozen yogurt） | |
Product | Frozen yogurt | |
Capacity | 1000kg/h | |
In/Out Temp. | +15℃ to -18℃ | |
Freezer Temp. | -38℃ | |
In/Out Time | 10-50min | |
Refrigerant | R507 | |
Consumption | 170kw | |
Freezing Container Thickness | 150mm | |
Product Height | ≤100mm | |
Belt Width | 2500mm | |
Product Input Conveyor/Output Conveyor | 1000 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Freezer Power | 15 KW | |
Freezer Size（L*W*H） | 20000×3000×2500mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
