High-Quality IQF Tunnel Freezer Supplier - Rapid Freezing for Food Processing Industry Freeze Cake And Flour Products

Tunnel freezer is widely used in frozen strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced ​​fish, meat dumplings, meat and chicken sub.
Availability:
Quantity:
  • FSW series

  • FST

  • FST-003B

Tunnel freezer product description
1. The tunnel freezer is widely used in frozen strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced fish, meat dumplings, meat and chicken sub.
2. The freezing time is short, the use of good cross ventilation, freezing time 10 ~ 50mins.
3. The two-speed motor with expanding the use of energy saving.
The various frozen products, into left and right cross blast fan, and a top blowing air mixing, the refrigeration, to achieve the best quality and efficiency.

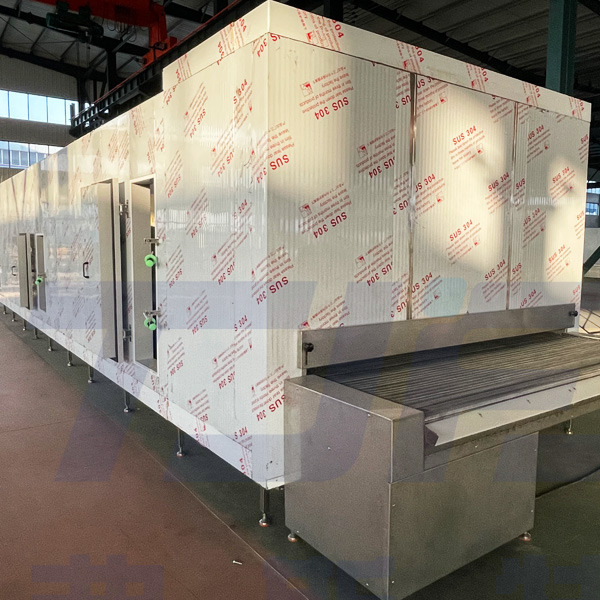

The main structure of the tunnel freezer

(1) Stainless steel conveyor belt;
(2) PU sandwich panel 150mm thick, laminated on both sides of stainless steel plate; with flooring;
(3) a door frame equipped with a heating means;

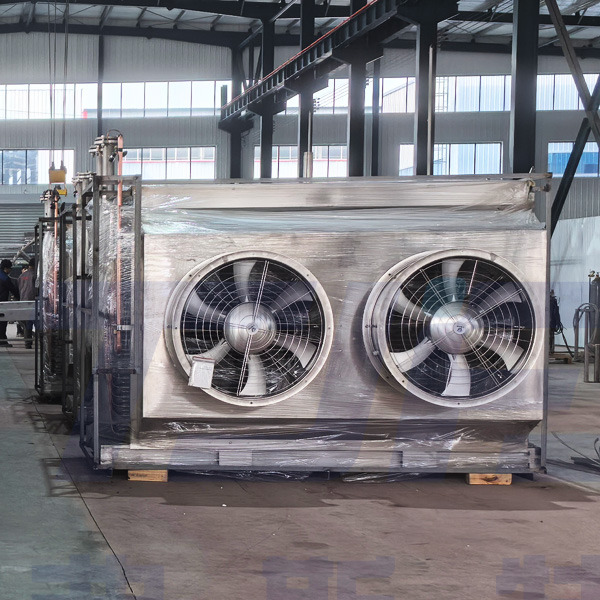

(4) an aluminum evaporator, different fin pitch;
(5) axial fan: stainless steel bellows, aluminum blade;
(6) all-welded stainless steel plate mounted on top of the floor drain. It will drain the defrost water through the stainless steel out of the cabinet;
(7) inlet means and outlet means of all structural components made of stainless steel;
(8) Control panel made of stainless steel;
(9) Schneider Electric or Siemens element;
Tunnel freezer 200kg/h parameter:

the 200kg/h Tunnel freezer parameters as follow:

frozen product :frozen pizza

capacity: 200kg/h

cooling capacity: 35kw (±40℃)

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 10.8*1.8*2.2m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric elements

the panels use double face stainless steel and  Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 1300mm  ,according to clients choice.

welcome to know our company products.

FSW100 tunnel freezer tunnel freezer for shrimp freeze
