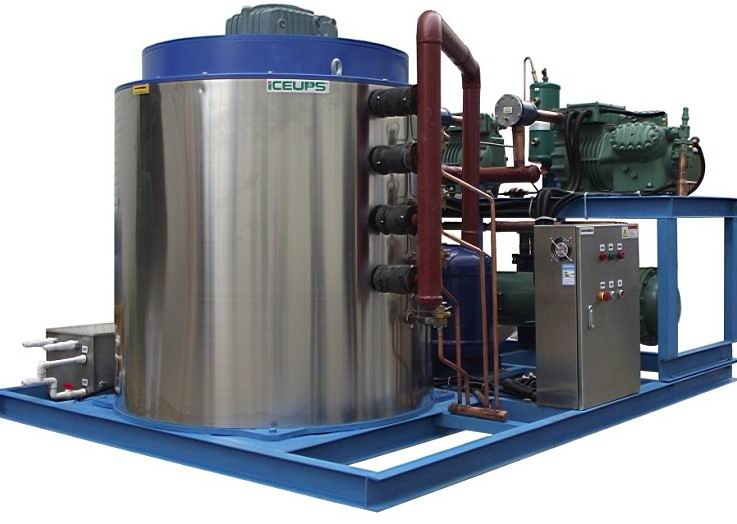

China Big Type Flack Ice Maker Machine for Fish Process 20T/24H

Flake ice maker machine for all kinds of fish and keep fresh etc
Availability:
Quantity:
  • FZB20000
  • FST
  • FST1205

FST20T flake ice maker machine parameter list :

Fresh water flake ice machine:

Name

Brand

Model

Material

Place

Evaporator

1

Evaporator

LR

LRD-20T

Carbon steel

CHINA

2

Reducer


TKVWGQ150


TAIWAN

3

Water pump


PA-1/2A

PP

CHINA

4

Dosing pump


WBM-02-07


CHINA

5

Water tank

LR

SX-20T

SUS304

CHINA

6

Water level

FST

FAST-25LP


CHINA

7

Sensor

REUIKE

MF-5KP2


TAIWAN

8

Bearing

SKF



SWISS

9

Ice blade

LR

One time molding

SUS 304


Refrigeration system

10

Compressor

BITZER

3*6FE-44Y


GERMANY

11

Condenser

JIANGCHE

Water/air cooling


CHINA

12

Liquid expansion valve

DANFOSS

---


DANMARK

13

Filter

DANFOSS

---


DANMARK

14

Solenoid valve

DANFOSS

---


DANMARK

15

Gas separator

D-F

---


CHINA

16

Ball valve

SANRONG

---


CHINA

17

Oil separator

D-F

---


CHINA

18

Oil receiver

D-F

---


CHINA

19

H-L pressure controller

DANFOSS

---


DANMARK

20

Oil pressure controller

Bitzer

---


GERMANY

21

Oil level controller

D-F

---


CHINA

22

Water cooling tower with water circulation pump



Electronic controller

23

PLC

LG



Korea

24

contactor

LS

---


Korea

25

Thermal overload relay

LS

---


Korea

26

Middle relay

LS

---


Korea

27

Phase protector

SONGLIN

---


TAIWAN

28

Touch screen







2. 20T General parameters:

No

Name

Data

1

Output (kg/24h)

20 000

2

Cooling capacity(KW)

130

3

Evaporating temp(℃)

-22

4

Condensing temp(℃)

45

5

         Workable ambient temp(℃)

45

6

Workable water supply temp(℃)

19

7

Installation power (KW)

76

8

Compressor power (KW)

69

9

Reducer power (KW)

1.5

10

Water pump power (KW)

0.75

11

Water cooling tower pumps (KW)

4

12

Dosing pump power(KW)

0.016

13

Power supply

3P/440V/60HZ

14

Water pressure(MPA)

≤0.6

15

Gas

R507A

16

Ice temp(℃)

-5~-8

17

  Ice thickness(mm)

1.5~2.3

18

Water pipe diameter

1/2’’

19

Weight(kg)

2860

20

Outline(L*W*H)mm

3695*2090*2235



3.) Installation requirements

(1) Voltage: 3P 380V 50 HZ; 3 phase with 5 wires;

(2) Water resource:Clean water, tap water is ok, within 1.5 meters from the ice machine;

(3) Installation place should be with good ventilation, away from dissipation devices and protected from direct splar radiation & rain , standard working environment temperature: 5℃~35℃;

(4) The ground should be level with good drainage system;

(5) Water pressure: 0.1MPa~0.6MPa;

(6) Space for installation: checking below picture


ice maker machine drawing
