Flack Ice Maker Machine for Supermarket 200kg/24h To 20T/24h

Flake ice maker machine for supermarket seafood keep fresh etc
Availability:
Quantity:
  • FZB2500
  • FST
  • FST1201

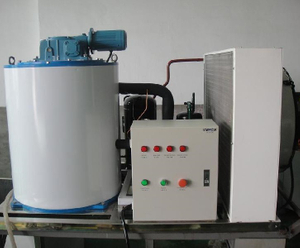

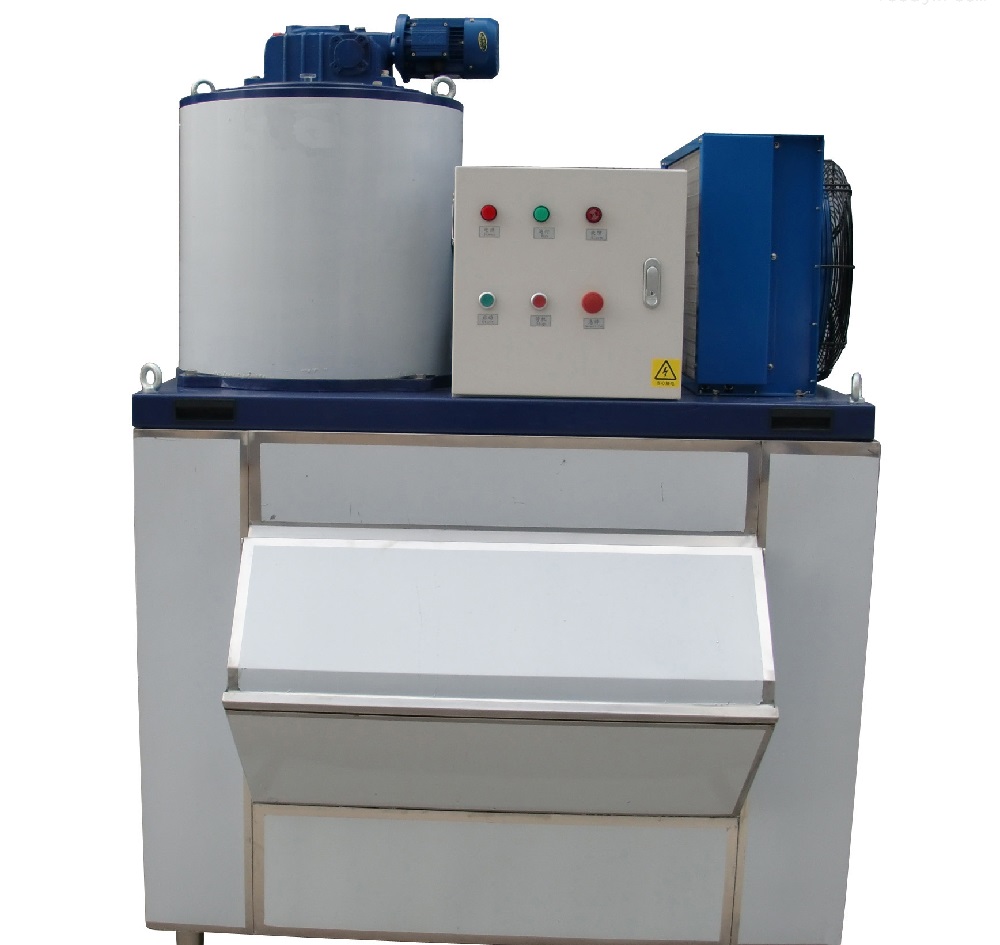

2500kg/24h fresh water flake ice machine

1.) Quotation for complete flake ice machine

Model

Daily capacity

Kg/24hrs

Power (kw)

L*W*H(mm)

Weight

(kg)

Qty

(unit)

Remarks

FST-2.5T

2500

9.1

1500*1095*1200

520

1

Fresh water;

Air cooling;

USA. Copland compressor

B500

500 kg ice capacity

1500*1380*1300

80

1

SUS 304 material


2.) General features:

-2T stands for 2500 kg/24 hrs, using freshwater to make ice;

-Power supply is 220V/3P/60HZ (standard);

-America Copland compressor , R404A as refrigerant;

-Spare parts use brands from USA, German......

-PLC automatic controller; All of problems are checked out directly by PLC;

-Save water and power;

-One ice scoop, one set of water inlet pipe and one salt water barrel are for free;


3.) Warranty, technical support and failure claim procedures

a. Ice systems delivered to customers are carefully examined and tested, with 72 hours trouble-free trial operation.

b. Ice systems delivered are plug-in ready and well piped, after buying back, just need to connect water source (tap water is ok) and power 220V/3P/60HZ. Easy installation and operation,

c. Ice systems enjoy 12 MONTHS guarantee ever since B/L date.


Technical support

a. Provide full technical support and after equipment installation.


b.  7*24 hours phone assistance on technical support.


Guarantee, technical support and failure claim

Failure Claim procedures

a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.

b. Relevant pictures are required for failure confirmation.

c. Engineering and after-sales service team will check and form a diagnosis report.

d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures.





4.) Ice flake machine parts list

NO.

Product name

Brand

Origin

Material

One

Ice generator

1

Evaporator

FST

China

Q235 Carbon steel

2

Reducer

FST

Taiwan, China


3

Circulating water pump

Hongjian

China


4

Infrared switch

Rico

Taiwan, China


5

Water level switch

Fast

China


6

Water tank

FST

China

SUS 304

7

Ice skates

FST

China

SUS 304

8

Bearing

AKG

German


9

Salt water pump

RDOSE

German


Two

Refrigerating system

1

Compressor

Copland

America

10 HP

2

Condenser

GREENHALGH

China

Air condenser; with Weiguang motor

3

Expansion valve

ALCO

America


4

Dry filter

ALCO

America


5

Oil separator

D&F

Tianjin, China


6

Liquid receiver

D&F

Tianjin, China


7

Solenoid valve

Castel

Italy


8

High & Low Pressure Controller

LEILI

China


Three

Control system

1

Electricity box

FST

China


2

Programmable controller (PLC)

LG

Korea


3

A.C. contactor

LG

Korea


4

Thermal Overload Relay

LG

Korea


5

Phase protector

Songling

Taiwan, China


6

Air switch

CHINT

China


Four

Ice storage system

2

Ice Bin B400

FST

China

SUS 304

3

Ice scoop

FST

China

Engineering plastic





5.) Technical parameters:

1

Ice output

2500 kg/24hrs

2

Gross weight in total

520kg

3

Ice machine measurement

1500*1095*1200 mm

Ice bin measurement

1500*1380*1300 mm

Measurement in total

1500*1380*2500 mm

4

Ice thickness

1.8 -2.3 mm

5

Refrigerant

R404A

6

Refrigerating capacity

15kw

7

Evaporator materials

Q235 Carbon steel (Interior: Carbon steel; Exterior surface: SUS 304; Insulation layer: Polyurethane); Frame: SUS 304

8

Evaporation temperature

-22℃

9

Condensing temperature

40℃

10

Inlet water temperature

18℃

11

Standard ambient temperature

25℃

12

Feed water pressure

0.1MP-0.5MP

13

Total power

9.1kw

14

Power supply

3P/220V(60Hz)

15

Ice temperature

-5∽-8℃

16

Cooling form

Air-cooling

17

Water feeding type

Fresh water

18

Water pipe size

1/2"

19

Noise

≤60dB
