China Fluidized Bed Freezer/fluidized IQF Freezer for Fruit And Vegetable Processing Equipment

The best machine to quickly freeze a variety of fruits and vegetables and some seafood

Quantity:
  • FSLD
  • FST
  • FST-021

Fluidized bed freezer / Fluidized IQF freezer main feature

1) Suitable for frozen processing of fluidized IQF of mung beans or fruit and vegetable slices, dice, etc.
2) Inverters and fan blowers for belt conveyors ensure flexibility in the production process even in the most difficult products.
3) Extremely efficient evaporator, optimized design and high-quality finishing guarantee extraordinary freezing efficiency.
4) Easy access to all freezer parts, easy maintenance and cleaning operations.
5) Stainless steel wire mesh belt is the most reliable solution at present, the proven performance of the user, and the universal solution, which is convenient for replacement and maintenance around the world.
6) The excellent fluidized IQF function is achieved through an additional belt-beating system and an adjustable high-pressure centrifugal blower, which generates vertical airflow and keeps the material flowing during the freezing process.
7) With our high-quality stainless steel belt and belt position cleaning device, we can bring the highest level of hygiene and easy cleaning refrigerator work.

Fluidized bed freezer/ IQF freezer parameter

Mode

FSLD500

FSLD1000

FSLD1500

FSLD2000

FSLD3000

Can pass ± 10% (kg / hour)

500

1000

1500

2000

3000

Cooling capacity (kw / h)
(To = -40, Tk = + 35)

90

170

255

320

480

Freezer size
L × W × H (M)

5 * 4.0 * 2.9

9 * 4.0 * 2.9

12* 4.2 *2.9

15 * 4.2 *2.9

19 *4.2 * 2.9

physical dimension
L × W × H (M)

7 *4.0 *2.9

11 * 4.0 * 2.9

14 * 4.2 *2.9

17 *4.2 * 2.9

21 * 4.2 *2.9

Power (Kw)

19

35.2

49.2

61.2

78

At feed temperature

+ 15 ℃

+ 15 ℃

+ 15 ℃

+ 15 ℃

+ 15 ℃

Discharge temperature

-18 ℃

-18 ℃

-18 ℃

-18 ℃

-18 ℃

Internal circulation temperature

-35 ± 2 ℃

-35 ± 2 ℃

-35 ± 2 ℃

-35 ± 2 ℃

-35 ± 2 ℃

Freezing time (minutes)

6-30

6-30

6-30

6-30

6-30

Refrigerant

R717 / R404A

R404A / R717

R404A / R717

R404A / R717

R404A / R717

Fluidized fast freezer structure diagram

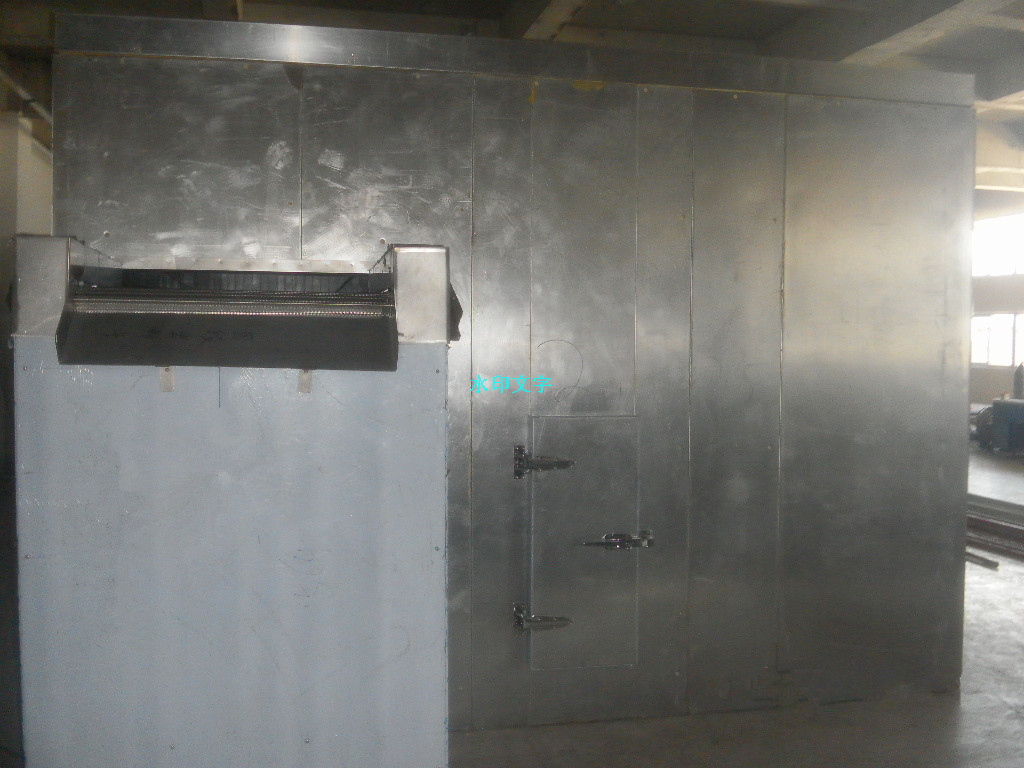

IQF fluidized freezer
fluidized bed freezer fluidized bed freezer
