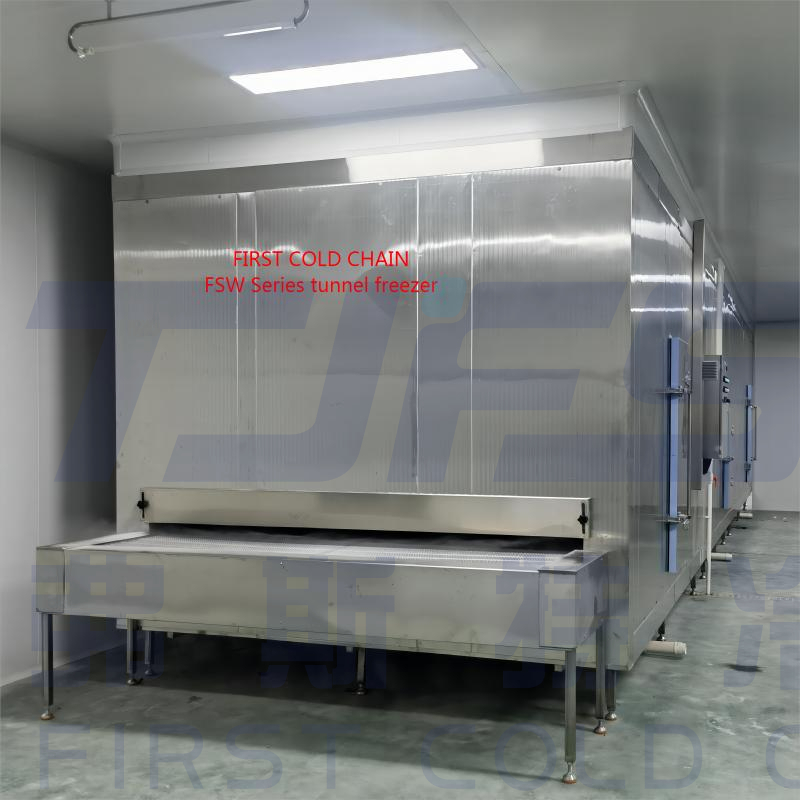

China FSW1500 High Quality Tunnel Freezer for Chicken Freeze From First Cold Chain

Tunnel freezer product description

Introducing the Tunnel-Type Quick Freezer, the ultimate solution for freezing various types of food products. This state-of-the-art freezer is designed to freeze a wide range of frozen foods such as seafood, pastries, cakes, and meats, with ease.

With its advanced technology, the Tunnel-Type Quick Freezer ensures better individual freezing of products, resulting in a more efficient and effective freezing process. The quick-freezing feature allows for faster freezing times, ensuring longer shelf life and freshness of your products.

This freezer is perfect for businesses in the food industry looking to enhance their production process and improve the quality of their products. The Tunnel-Type Quick Freezer is a reliable and durable investment that will help you achieve your business goals and exceed customer expectations.

Invest in the Tunnel-Type Quick Freezer today and experience the benefits of faster, more efficient, and effective freezing of your food products.

FSW1500  TUNNEL FREEZER TECHNICAL PARAMETERS

Item		FSW1500（ freezing chicken legs ）
Product		chicken freeze
Capacity		1500kg/h
In/Out Temp.		+15℃ to -18℃
Freezer Temp.		-35℃
In/Out Time		10-50min
Refrigerant		R507
Consumption		255kw
Freezing Container Thickness		100mm
Product Height		≤100mm
Belt Width		3000mm
Product Input Conveyor/Output Conveyor		1000 mm
Water Input Pressure		≥3 kg/cm2
Freezer Power		20.2KW
Freezer Size（L*W*H）		23000×3500×2500mm
Freezer Body Material	Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm
Main Electric Brand	Schneider(France)
Belt and Speed	Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation
Slide Track Material	Ultrahigh molecular polyethylene material.
Internal Structure	All made of 304 Stainless Steel Material, Argon arc welding
Evaporator	Effective from large aluminum finned tube set, stainless steel panel stent
Fan and Motor	Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption
