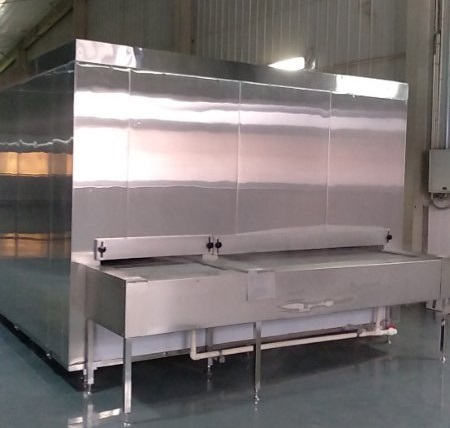

Tunnel freezer machine 300kg/h main structure:
(1) Stainless steel conveyor belt;
(2) 150mm thick polyurethane sandwich insulation board, double-sided stainless steel polyurethane insulation board;
(3) The door is equipped with a heating device;
(4) Evaporator: variable distance from aluminum finned tube group to improve freezing efficiency and extend frosting time;
(5) Axial fan: stainless steel fan, aluminum blade;
(6) All indoor structures are argon arc welded, and it will bring the defrost water out of the warehouse through a stainless steel drain pipe;
(7) the inlet device, outlet device and all structural components are made of stainless steel;
(8) World-renowned electrical components
the 300kg/h Tunnel freezer parameters as follow:
frozen product :frozen meat
cooling capacity: 45kw (±40℃）
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)
the spiral freezer body size: 12*2.3*2.4m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric elements
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 1800mm ,according to clients choice.
the compressor unit choose 75hp or 80hp compressor unit.
