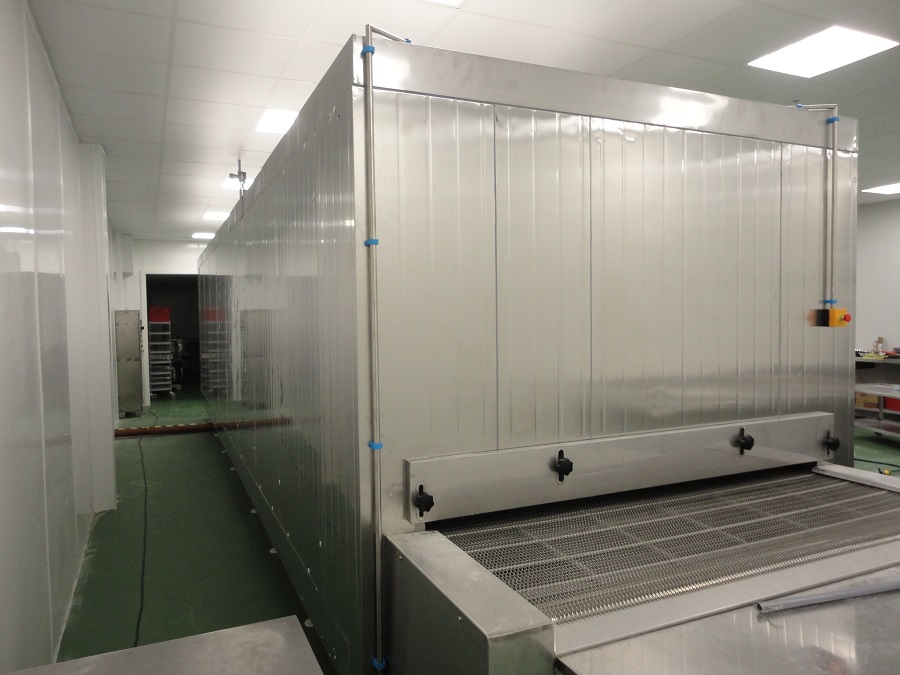

Tunnel freezer is widely used for quick-frozen stick, cube or cereal foods such as ice cream, shrimp, sliced fish, meat dumplings, meat and chicken
1. Simple structure, easy operation and long service life.
2. InsulationThe plate is made of double-layer stainless steel sandwich polyurethane insulation board, which has good heat insulation performance. The internal parts are made of high-quality stainless steel SUS304, which is easy to clean and meets HACCP requirements.
3. Stainless steel mesh belt with smooth surface and easy to clean.
4. Use water cream to ensure cleanliness and hygiene.
5. Variable frequency control achieves infinitely adjustable speed, and the freezing time of frozen goods is adjustable, which can be applied to the processing of frozen goods
the 1000kg/h Tunnel freezer parameters as follow:
frozen product :frozen fish
cooling capacity: 170kw (±40℃）
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)
the spiral freezer body size: 19.5*3*2.5m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric elements
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 2500mm ,according to clients choice.
