FSK2
FST
FST-00112
Hi! We are one of the largest bakeries in Costa Rica and we need to quote an IQF Freezer for bakery products. We need to freeze approximately 120-240 kg of bread per hour. Please contact me asap. Thanks!
The client choose blast freezer ,
the product inter/out temperature :+26/-18 ℃
The trolley size :65*45*200cm 60-80kg/trolley
About 2-3 trolleys per hour
Blast freezer Equipment selection

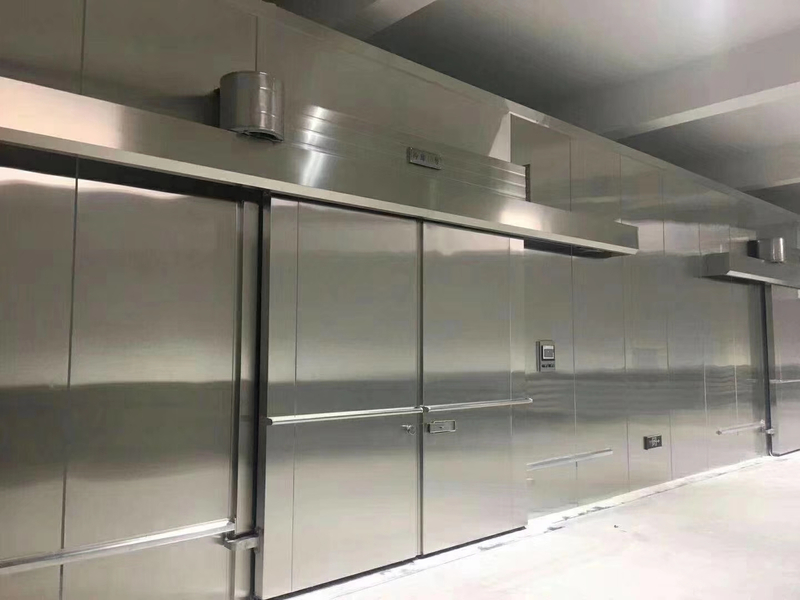

1. Blast freezer used double-sided stainless steel steel polyurethane sandwich panels,
150mm thick，Unit volume:38-42KG/m⊃3;,steel plate thick:δ 0.5mm
PU adopts eccentric hook connection method, flat-fell seam to play four glue, process the hole or Angle of foam tank seam.
3. Refrigerator door insulation: track manual shift gate, doorway dimensions: height × width: 2200 × 900mm . Door thickness: δ150mm；doors with safety door locking device, can open the door to escape the library
4. Door material：Stainless steel plate，Polyurethane foam insulation material，The density of polyurethane：40±2kg/m⊃3;
Refrigeration equipment
1.Refrigeration unit：Bitzer S6F-30.2Y compressor；
2.Condenser：Evapotative type condenser for compressor unit
3.Evaporator：Selection of ceiling type air cooler。Air cooling machine adopts aluminum tube aluminum fin，Steel plate spraying.
4. Refrigeration valves ： Danfoss 、Castel、ALCO、FSK Well-known brands
5. Electrical control system: Each warehouse refrigeration equipment is equipped with an independent electrical control device. Used ABB、Schneider, SIEMENS, MITSUBISHI, and other domestic and international famous brands Delixi。Copper core waterproof cable for electric wire
6. Design ideas：Automatic control of temperature real time energy regulation
FSK2 Blast freezer project table PU6 surface thermal insulation material | ||||||||||
NO. | Name | Model | Unit | Qty | Note | Bran | Picture show | |||
1. | 3.7*3*3m -35℃ PU double stainless steel steel insulation board | δ：150mm | ㎡ | 62.4 | Thickness:δ150mm，Thick steel:δ0.5mm，Bulk density:40±2kg/m⊃3; |
| ||||
2 | Manual sliding door | 2200×900m×150mm | set | 1 | steel part，The door frame is made of aluminum alloy，stainless steel plate thickness＆0.5mm |
| ||||
3 | Lighting lamp | 30W | set | 4 | Moisture-proof | CHINA | ||||
Refrigeration equipment and main valve parts | ||||||||||
NO. | Name | Model | Unit | Qty | Note | Brand | Picture show | |||
1 | compressor unit | S6F-30.2Y | set | 1 | Blast freezer | Bitzer brand compressor |
| |||
1.1 | Evaporator (Blast freezer) | ZF230 | set | 1 | Copper tube aluminum fin plate spray treatment Distance：12-18mm | CHINA | ||||
二 | Refrigeration valves | Stop valve | SET | Danfoss | ||||||
Filter | SET | Danfoss | ||||||||
Solenoid valve | SET | Danfoss | ||||||||
Expansion valve | SET | Danfoss | ||||||||
四 | Electrical system control | |||||||||
1. | Electrical automatic control | FST-S6F-30.2Y | set | 1 | ||||||
4.1 FSK2 Blast Freezer compressor Equipment selection
1.Compressor unit operating parameter
Operation condition | Compressor unit type | Refrigerating capacity | Electric power |
-40/+40℃ | Bitzer S6F-30.2Y | 27.5Kw | 24.3Kw |
Choose Bitzer piston double -stage compressor 1set：S6F-30.2Y
2、Air -Cold condenser
Type：FST380 Air-cold condenser.
3、Electrical control system ：main electrical element are Schneider.
4.2 Compressor unit parameters
Compressor unit name | unit | Semi-hermetic double-stage compressor unit | |
Compressor unit type | S6F-30.2Y | ||
Compressor | set | German | |
Refrigerant | type | R404A | |
Design conditions | ℃ | -40℃/40℃ | |
refrigeration capacity | KW | 27.5KW | |
Voltage and power | 3N/60Hz/220V | ||
5. Technical parameters of evaporator
Type | ZF230 | |
Heat exchange area | 230㎡ | |
Fan motor | Qty | 2set |
Air volume（m3/h） | 22000m3/h | |
Power(w) | 2*1.5kw | |
Duct diameter | Φ600mm | |
Distance | 12mm-18mm | |
Supply power | 60HZ 220 V | |
Method of removing frost | Water frost | |
Material | Aluminum tube Aluminum fin | |
Size（mm）L*W*H | 3000×1100×1500mm | |
Standard | GB IP65 | |
