China High Quality 500kg/h Tunnel Freezer for Chicken Breast Processing

Tunnel freezer is widely used in frozen strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced ​​fish, meat dumplings, meat and chicken sub this tunnel freezer more capacity ,operation more convenient ,save labor.
Availability:
Quantity:
  • FSW500
  • FST
  • FST-500
FSW500  Tunnel freezer product description

Frozen food: Chicken cut 4 pieces

Inter/out temperature :+5/-15℃
capacity ; 500krgs hrs.
refrigerant : Freon .
Voltages: 440/3ph 60 hz.
Fusheng double screw compressor SDL330E 1 set

FSW500 TUNNEL FREEZER TECHNICAL PARAMETERS

Item

FSW500 Frozen chicken breast

Product

Frozen chicken breast

Capacity

500kg/h

In/Out Temp.

+5 to -15

Freezer Temp.

-35

In/Out Time

20-90min

Refrigerant

R404A

Consumption

90kw

Freezing Container Thickness

150mm

Product Height

≤100mm

Belt Width

2500mm

Product Input Conveyor/Output Conveyor

700 mm

Water Input Pressure

≥3 kg/cm2

Freezer Power

15.4 KW

Freezer Size(L*W*H)

14003000×2500mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption

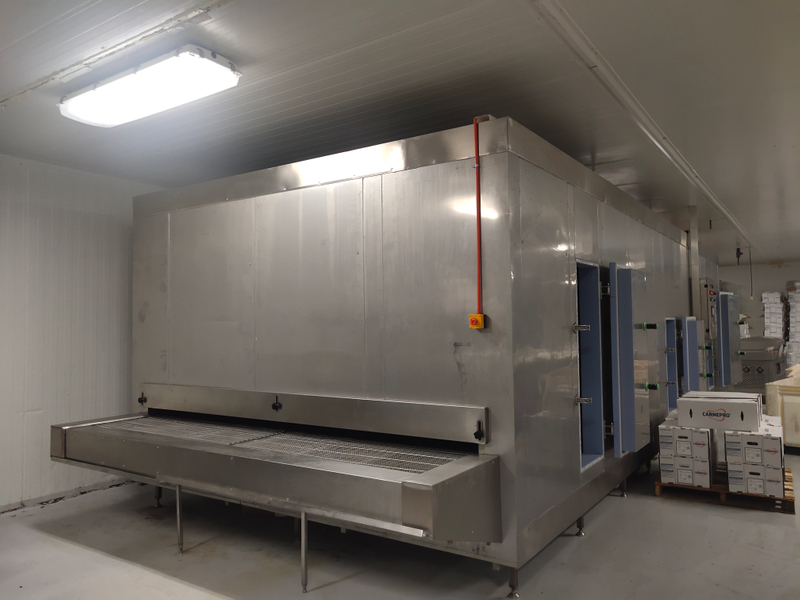

tunnel freezer

tunnel freezer drawing
