FSW300
FST
FST-003B

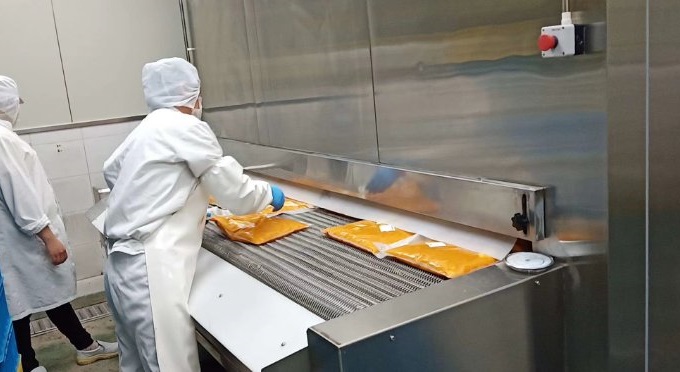

(1) Stainless steel conveyor belt;
(2) PU sandwich panel 150mm thick, laminated on both sides of stainless steel plate; with flooring;
(3) a door frame equipped with a heating means;
(4) an aluminum evaporator, different fin pitch;
(5) axial fan: stainless steel bellows, aluminum blade;
(6) all-welded stainless steel plate mounted on top of the floor drain. It will drain the defrost water through the stainless steel out of the cabinet;
(7) inlet means and outlet means of all structural components made of stainless steel;
(8) Control panel made of stainless steel;
(9) Schneider Electric or Siemens element;
FSW300 TUNNEL FREEZER TECHNICAL PARAMETERS
Item | FSW300（ Chicken Frozen） | |
Product | Chicken | |
Capacity | 300kg/h | |
In/Out Temp. | +15℃ to -18℃ | |
Freezer Temp. | -35℃ | |
In/Out Time | 10-50min | |
Refrigerant | R404A | |
Consumption | 45kw | |
Freezing Container Thickness | 150mm | |
Product Height | ≤100mm | |
Belt Width | 1800mm | |
Product Input Conveyor/Output Conveyor | 1000/600 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Freezer Power | 7.5KW | |
Freezer Size（L*W*H） | 12000×2300×2300mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion step less speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
