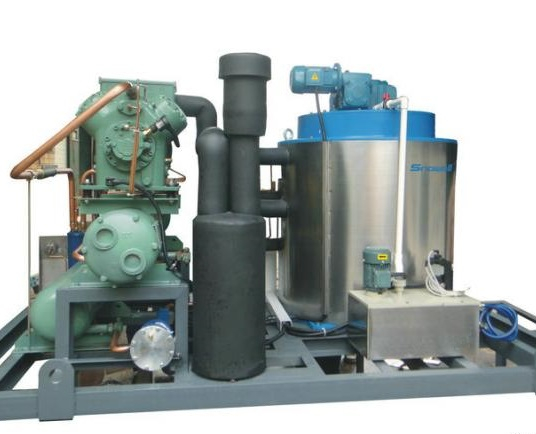

Flack Ice Maker Machine for Super Market Process 3T/24H

3000kg/24h Flake ice maker Technical data and components list

Ice output：3000kg/24hrs

Compressor：Germany Bitzer

Ice machine size：1750*1190*1200mm

G.W.：530kg

Standard power supply：3P/380V 50HZ

Total power：15.11 KW

Refrigerating capacity：18 KW

Refrigerant：R404A

Cooling style：Air cooling

Ice storage room is optional according to customers’ request with extra price.

Standard cooling type:Air cooling

Installation requirements:

(1) Voltage: 3P  380~420V  50 HZ; 3 phase

(2) Installation place should be with good ventilation, away from dissipation devices and protected from direct splar radiation & rain , standard working environment temperature: 5℃~35℃;

(3) The ground should be level with good drainage system;

(4) Space for installation: checking below picture
