Expand Your Seafood Factory with The FSL300 Spiral IQF Freezer: Optimal for Dumplings, Shrimp, Or Fish

FSL spiral freezer/cooler series machine is a kind of high efficiency, energy saving quick-frozen device It covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
Availability:
Quantity:
  • FSL300

  • FST

  • FST-0021

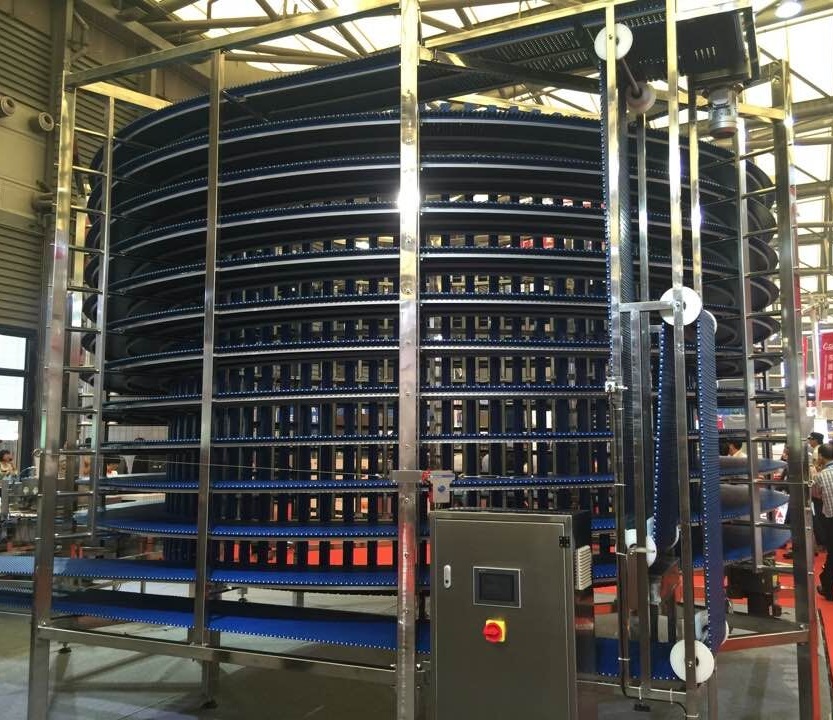

Spiral freezer machine is a kind of high efficiency, energy saving quick-frozen device
Spiral freezer covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.
This machine is completed with base plate of quick freezing machine;
the users do not need to make the heat preservation fundation.
Spiral quick-freezing machine widely used in fried food, aquatic products, all kinds of pasta, prepared food, meat and other food

FSL300  SPIRAL FREEZER TECHNICAL PARAMETERS

Item

FSL300dumplings

Product

dumplings

Capacity

300kg/h

In/Out Temp.

+15 to -18

Cooler Temp.

-35

In/Out Time

15-75min

Refrigerant

R404A

Refrigeration capacity

45kw

Freezer Body Thickness

150mm

Product Height

80mm

Belt Width

400mm (effective 320mm)

Belt length

150m

Belt layer number

15 layers

Drum diameter

1000mm

Product Input Conveyor/Output Conveyor

1000/500 mm

Water Input Pressure

≥3 kg/cm2

Cooler Power

4.5KW(380V50HZ)

Cooler Size(L*W*H)

5700×3500×3500

(dont include inter/out conveyor length)

Cooler Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel belt; Frequency conversion stepless speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption

spiral freezer
