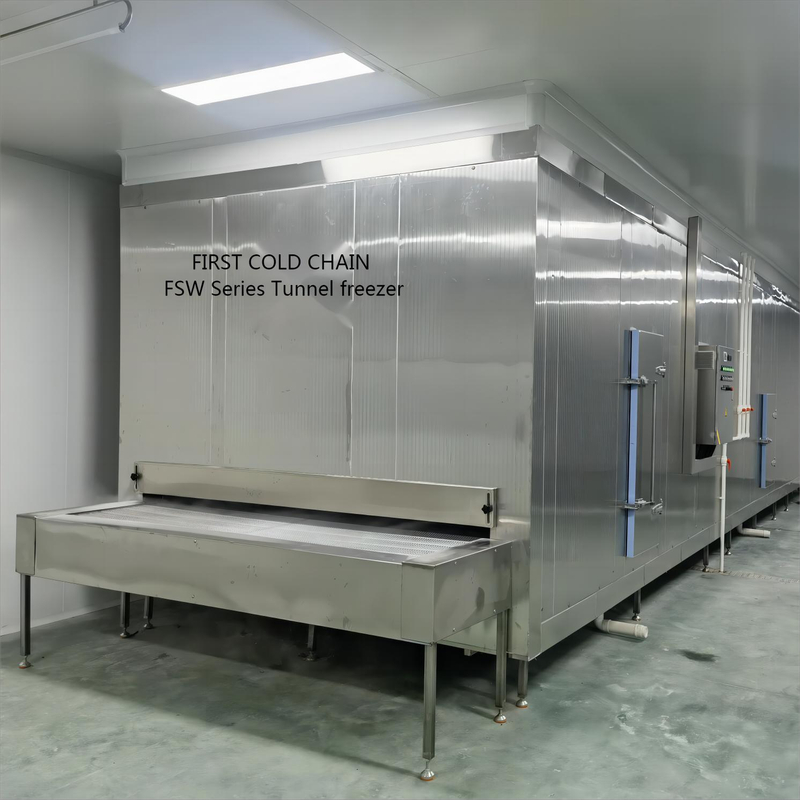

China FSW500 Tunnel Type Quick Freezer for Chicken Freeze From First Cold Chain

Tunnel freezer is widely used in cooling strips, cubes or grain foods, such as cheese, cake, and chicken nuggets this tunnel freezer more capacity ,operation more convenient ,save labor.
Availability:
Quantity:
  • FSW500

  • FST

  • FST10002

Tunnel freezer  product description

Introducing the Tunnel-Type Quick Freezer, the ultimate solution for freezing various types of food products. This state-of-the-art freezer is designed to freeze a wide range of frozen foods such as seafood, pastries, cakes, and meats, with ease.

With its advanced technology, the Tunnel-Type Quick Freezer ensures better individual freezing of products, resulting in a more efficient and effective freezing process. The quick-freezing feature allows for faster freezing times, ensuring longer shelf life and freshness of your products.

This freezer is perfect for businesses in the food industry looking to enhance their production process and improve the quality of their products. The Tunnel-Type Quick Freezer is a reliable and durable investment that will help you achieve your business goals and exceed customer expectations.

Invest in the Tunnel-Type Quick Freezer today and experience the benefits of faster, more efficient, and effective freezing of your food products.


FSW500  TUNNEL FREEZER TECHNICAL PARAMETERS

Item

FSW500 freezing chicken legs

Product

chicken freeze

Capacity

500kg/h

In/Out Temp.

+15 to -18

Freezer Temp.

-35

In/Out Time

10-50min

Refrigerant

R507

Consumption

85kw

Freezing Container Thickness

100mm

Product Height

≤100mm

Belt Width

2500mm

Product Input Conveyor/Output Conveyor

1000 mm

Water Input Pressure

≥3 kg/cm2

Freezer Power

20.2KW

Freezer Size(L*W*H)

14003000×2500mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption





tunnel freezer drawing


tunnel freezer drawing
