2FCR160
FST
FST160
(1)、《design code 》GB50072-2010;
(2)、《heating ventilation and air-conditioning planning design code 》GB50019-2003;
(3)、《refrigeration design handbook》;
(4)、User requirement。
(1)、Refrigerant:R404A;
(2)、Evaporating condensing temperature:-42/+45℃
1.compressor unit operating parameter
operation condition | Compressor unit type | refrigerating capacity | electric power |
-42/+40℃ | NRL6-160-538Y-2 | 208Kw | 220Kw |
Choose Italy frascold screw compressor 3set:NRL6-160-538Y-2
2、Evaporation condenser
Type:ZFLA-1000 evaporation condenser.
3、Electrical control system :main electrical element are Schneider.

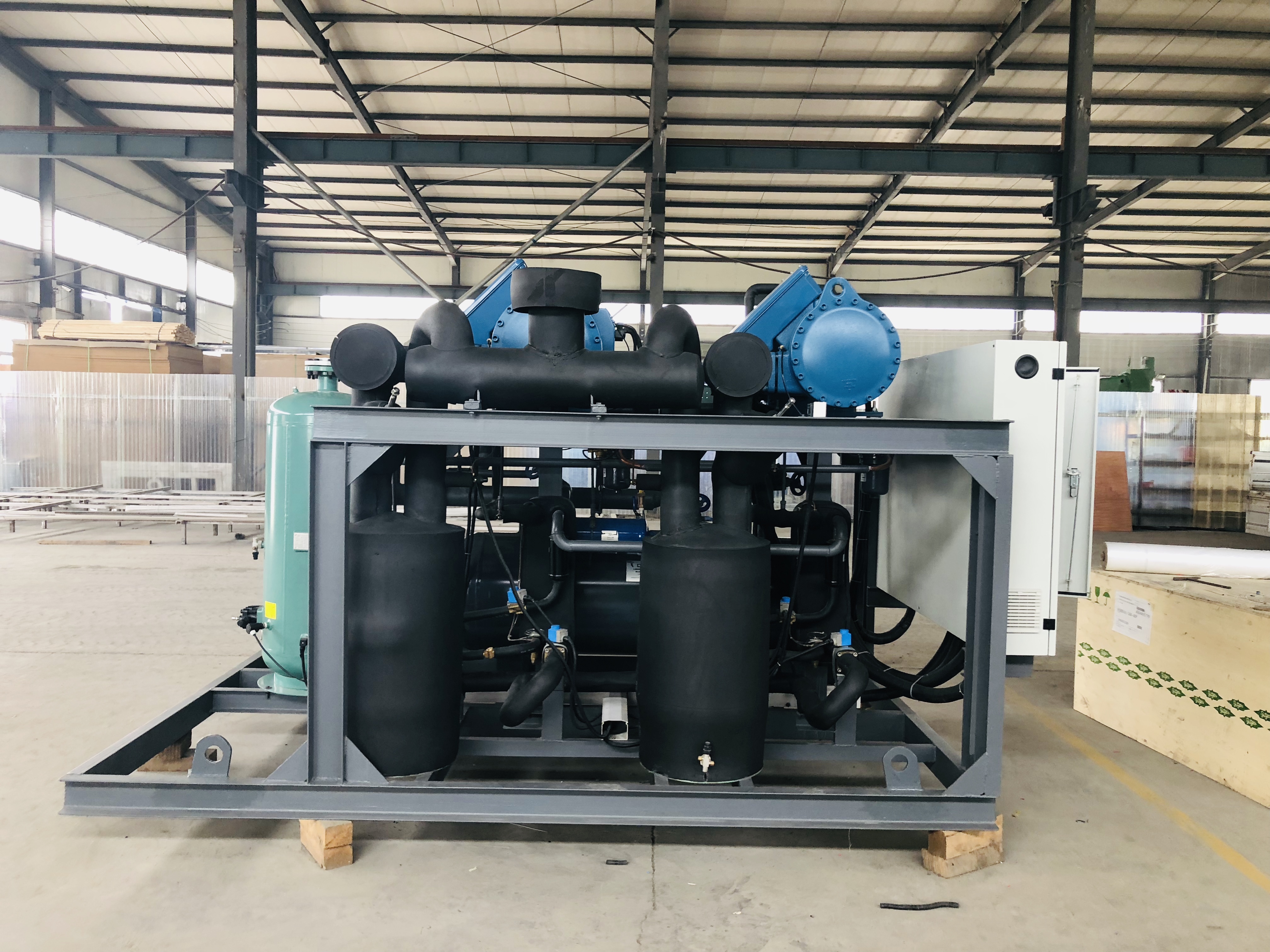

Compressor unit name | unit | Screw compressor unit | |
Compressor unit type | NRL6-160-538Y | ||
Compressor | 2set | Italy frascold NRL6-160-538Y-2 | |
Compressor | Theory Displacement | m3/h | 538m3/h/set 50HZ |
Energy Adjustable range | 100%-75%-50% | ||
refrigerant | type | R404A | |
Design conditions | ℃ | -42℃/40℃ | |
refrigeration capacity | KW | 208KW | |
Voltage and power | 3N/50Hz/380V 220KW | ||
oil cooler | liquid cooling | ||
Overall dimensions(L*W*H) | mm | 3500×2000×2300 | |
Unit weight | kg | ~3000 |
(1)、《design code 》GB50072-2010;
(2)、《heating ventilation and air-conditioning planning design code 》GB50019-2003;
(3)、《refrigeration design handbook》;
(4)、User requirement。
(1)、Refrigerant:R404A;
(2)、Evaporating condensing temperature:-42/+45℃
1.compressor unit operating parameter
operation condition | Compressor unit type | refrigerating capacity | electric power |
-42/+40℃ | NRL6-160-538Y-2 | 208Kw | 220Kw |
Choose Italy frascold screw compressor 3set:NRL6-160-538Y-2
2、Evaporation condenser
Type:ZFLA-1000 evaporation condenser.
3、Electrical control system :main electrical element are Schneider.
Compressor unit name | unit | Screw compressor unit | |
Compressor unit type | NRL6-160-538Y | ||
Compressor | 2set | Italy frascold NRL6-160-538Y-2 | |
Compressor | Theory Displacement | m3/h | 538m3/h/set 50HZ |
Energy Adjustable range | 100%-75%-50% | ||
refrigerant | type | R404A | |
Design conditions | ℃ | -42℃/40℃ | |
refrigeration capacity | KW | 208KW | |
Voltage and power | 3N/50Hz/380V 220KW | ||
oil cooler | liquid cooling | ||
Overall dimensions(L*W*H) | mm | 3500×2000×2300 | |
Unit weight | kg | ~3000 |
