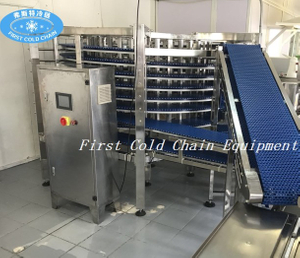

High Degree Automatic Spiral Freezer 1000kg/h for Meat Or Fish

Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing

Quantity:
  • FSL
  • FST
  • FST-001

Spiral freezer Product Description

Spiral freezer Applications:

Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing

spiral freezer 1500kg/h parameters:

the 1500kg/h spiral freezer parameters as follow:

frozen product :fish

capacity: 1500kg/h

cooling capacity: 255kw (±40℃)

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

the spiral freezer body size: 7*5*3.5m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and  Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.


Spiral Freezing drawing
