FSLD
FST
FST-0013
Fluidized IQF freezers product description :
FSLD series fluidized bed IQF freezers use of advanced technology, combined with the latest design in Sweden and Canada, to improve the real individual quick freezing of efficiency and quality.
Fluidized IQF freezer is the most suitable for vegetables, fruits such as peas, sweet corn, carrot or dice, caultiflower sheet like frozen equipment, shrimp, seafood is also very effective. In general, it is ideal for any smaller size and large-capacity food.
The main features of FSLD series fluidized IQF tunnel freezer:
1) According to HACCP requirements designed to meet international standards of food hygiene.
2) robust stainless steel frame and modular fuselage insulation board for freezing.
3) air volume, high pressure high efficiency blower fan blade special design, lighter weight, save energy.
4) two-stage conveyor, to ensure optimal results fluidization frozen.
5) made of high-quality aluminum evaporator with aluminum fins. High efficiency, long working hours.
6) spring grade stainless steel mesh belt.
7 position on the network) input regions belt cleaning device, the cleaning time easy to operate.
8) All the detailed design and finishing, to ensure the best quality of your final product.
FSLD1000 IQF FREEZER TECHNICAL PARAMETERS
Item | FSLD1000（ frozen fresh lime slices） | |
Product | Frozen fresh lime slices | |
Capacity | 1000kg/h | |
In/Out Temp. | +15℃ to -18℃ | |
Freezer Temp. | -35℃ | |
In/Out Time | 6-30min | |
Refrigerant | R404A | |
Consumption | 170kw | |
Freezing Container Thickness | 150mm | |
Product Height | ≤100mm | |
Belt Width | 1200mm | |
Product Input Conveyor/Output Conveyor | 1000 mm/1000mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Freezer Power | 38.2KW | |
Freezer Size（L*W*H） | 12000×4200×3000mm | |
Freezer Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.5 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |

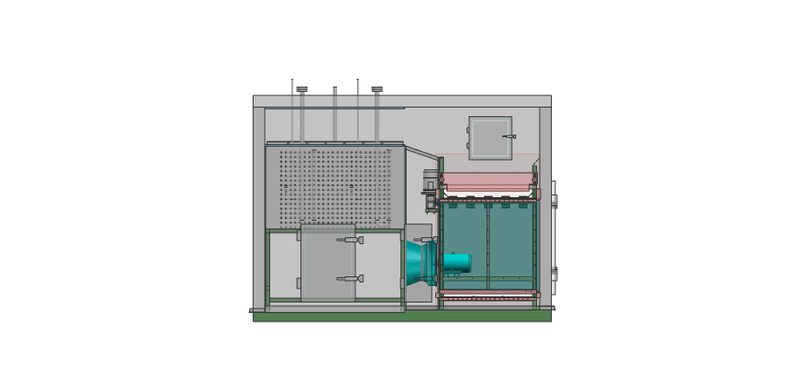

Fluidized bed quick freezing structure diagram
