First Cold Chain IQF And Tunnel Freezing Systems | Customized Solutions for Your Business

Our IQF and tunnel freezing systems are customizable to meet the unique needs of your business. Improve your production efficiency with our reliable freezing solutions.
Availability:
Quantity:
  • FSW300A

  • FST

  • FST-003B

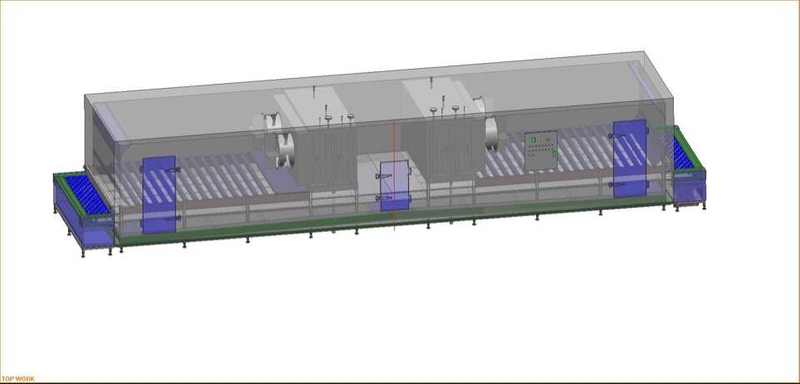

Tunnel freezer product description

Introducing the Tunnel Freezer, the ultimate solution for freezing various types of food products. This state-of-the-art freezer is designed to freeze a wide range of frozen foods such as seafood, pastries, cakes, and meats, with ease.


With its advanced technology, the Tunnel Freezer ensures better individual freezing of products, resulting in a more efficient and effective freezing process. The quick-freezing feature allows for faster freezing times, ensuring longer shelf life and freshness of your products.


This Tunnel freezer is perfect for businesses in the food industry looking to enhance their production process and improve the quality of their products. The Tunnel-Type Quick Freezer is a reliable and durable investment that will help you achieve your business goals and exceed customer expectations.


Invest in the Tunnel Freezer today and experience the benefits of faster, more efficient, and effective freezing of your food products.


FSW300A TUNNEL FREEZER TECHNICAL PARAMETERS

Item

FSW300A Chicken Frozen

Product

Chicken

Capacity

200-300kg/h

In/Out Temp.

+15 to -18

Freezer Temp.

-35

In/Out Time

10-50min

Refrigerant

R404A

Consumption

35kw

Freezing Container Thickness

150mm

Product Height

≤100mm

Belt Width

1500mm

Product Input Conveyor/Output Conveyor

750 mm

Water Input Pressure

≥3 kg/cm2

Freezer Power

5.95KW

Freezer Size(L*W*H)

11502000×2300mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel belt; Frequency conversion step less speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption

5.FSW300 TUNNEL FREEZER TECHNICAL PARAMETERS

Item

FSW300 Chicken Frozen

Product

Chicken

Capacity

200-300kg/h

In/Out Temp.

+15 to -18

Freezer Temp.

-35

In/Out Time

10-50min

Refrigerant

R404A

Consumption

35kw

Freezing Container Thickness

150mm

Product Height

≤100mm

Belt Width

1500mm

Product Input Conveyor/Output Conveyor

750 mm

Water Input Pressure

≥3 kg/cm2

Freezer Power

5.95KW

Freezer Size(L*W*H)

11502000×2300mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel belt; Frequency conversion step less speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption


100kg/h tunnel freezer tunnel freezer
