FSL300
FST
FST-0021

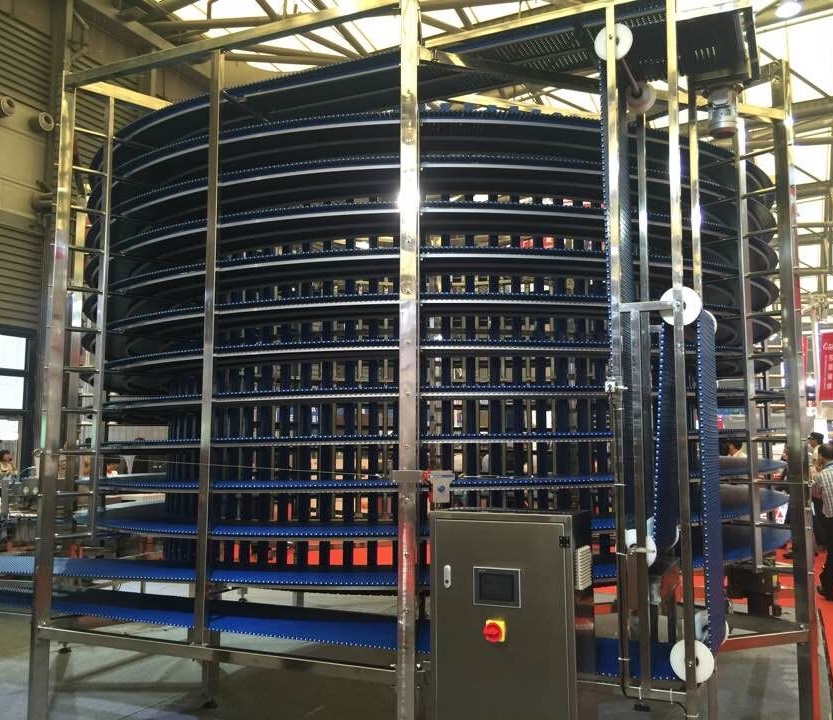

Spiral freezer machine is a kind of high efficiency, energy saving quick-frozen device
Spiral freezer covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.
This machine is completed with base plate of quick freezing machine;
the users do not need to make the heat preservation fundation.
Spiral quick-freezing machine widely used in fried food, aquatic products, all kinds of pasta, prepared food, meat and other food
FSL300 SPIRAL FREEZER TECHNICAL PARAMETERS
Item | FSL300（fish） | |
Product | fish | |
Capacity | 300kg/h | |
In/Out Temp. | +15℃ to -18℃ | |
Cooler Temp. | -35℃ | |
In/Out Time | 15-75min | |
Refrigerant | R717 | |
Refrigeration capacity | 45kw | |
Freezer Body Thickness | 150mm | |
Product Height | ≤80mm | |
Belt Width | 400mm (effective 320mm) | |
Belt length | 150m | |
Belt layer number | 15 layers | |
Drum diameter | 1000mm | |
Product Input Conveyor/Output Conveyor | 1000/500 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Cooler Power | 4.5KW(380V50HZ) | |
Cooler Size（L*W*H） | 5700×3500×3500 （don’t include inter/out conveyor length） | |
Cooler Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
