China FYW500 High Quality Tunnel Cooler for Cheese Cooling From First Cold Chain

Tunnel cooler is widely used in cooling strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced ​​fish, meat dumplings, meat and chicken sub this tunnel freezer more capacity ,operation more convenient ,save labor.
Availability:
Quantity:
  • FYW500

  • FST

  • FST10002

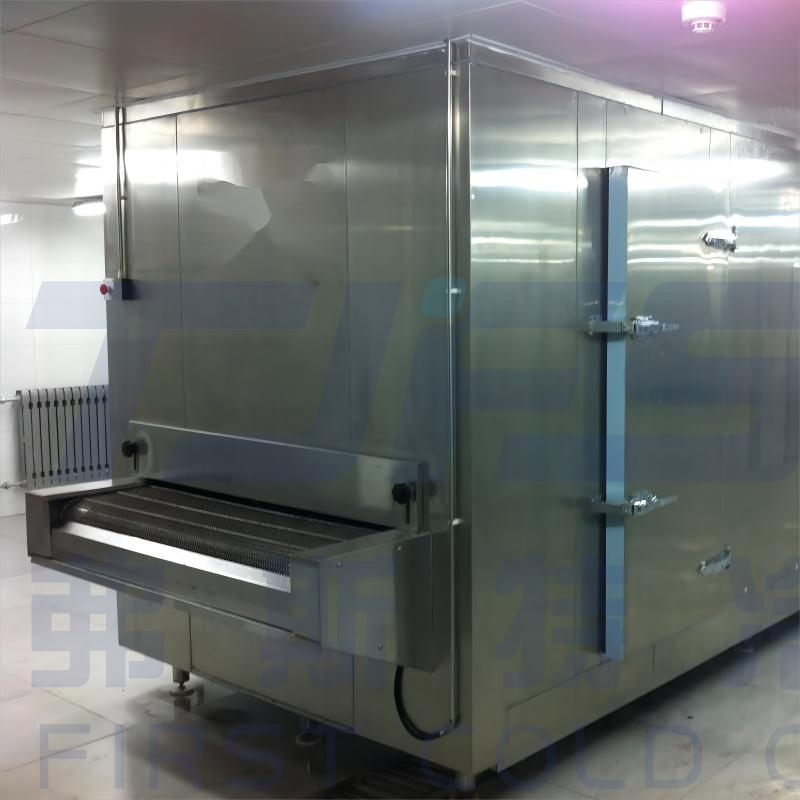

Tunnel cooler product description
Tunnel  cooling machine is widely used in frozen strips, cubes or grain foods, such as ice cream, shrimp, shrimp, sliced fish, meat dumplings, meat and chicken sub.
With a two-speed motor, expanding the use of energy saving.
Depending on the frozen product into left and right cross-blasting fan, air mixing, and the top-blowing, the refrigeration, to achieve the best quality and efficiency
1.Simeple structure, easy operation and long life.
2.Library stainless steel plate using double sandwich polyurethane insulation board, good insulation properties, the inner member made of stainless steel SUS304, easy to clean, HACCP requirements.
3. The stainless steel mesh belt, smooth surfaces, easy to clean.
4. Use water cream to ensure hygiene.

5.Invter infinitely adjustable speed control is realized, frozen goods freeze time is adjustable, it can be applied to processing of frozen goods.

FYW500  TUNNEL COOLER TECHNICAL PARAMETERS

Item

FYW500 cooling cheese

Product

cooling cheese

Capacity

500kg/h

In/Out Temp.

+55 to +8

Freezer Temp.

-10

In/Out Time

10-50min

Refrigerant

R507

Consumption

40kw

Freezing Container Thickness

100mm

Product Height

≤100mm

Belt Width

1800mm

Product Input Conveyor/Output Conveyor

1000 mm

Water Input Pressure

≥3 kg/cm2

Freezer Power

7.5 KW

Freezer Size(L*W*H)

11000×2300×2200mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 100 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade stainless steel mesh belt; Frequency conversion stepless speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption





tunnel freezer drawing


tunnel freezer drawing
