FYL1000
FST
FST16
Cooling product: pouch cooling
Product weight: 150gr Single Doy Pouchs - 140 W x 185 L x 40Thk mm
- 150gr (2 X75gr) Dual Doy Pouchs – 140 (70x70) W x 185L x 40Thk mm
1. Nestle we need capacity 1000kh/hr
- 150gr Single Doy Pouchs - 140 W x 185 L x 40Thk mm
- 150gr (2 X75gr) Dual Doy Pouchs – 140 (70x70) W x 185L x 40Thk mm
1. Pouch In/Out temperature: +80/+40℃
2. Refrigerant compressor unit Nestle apply R507A
3. Detail specification of this machine:
· Spiral system work flow from Up to Down
· Layout detail with dimension top view/side view and 3D
· Utility supply from Nestle ?
· Follow Nestle standard design food grade, Hygienic food safety design
· Safety and health for operator and equipment.

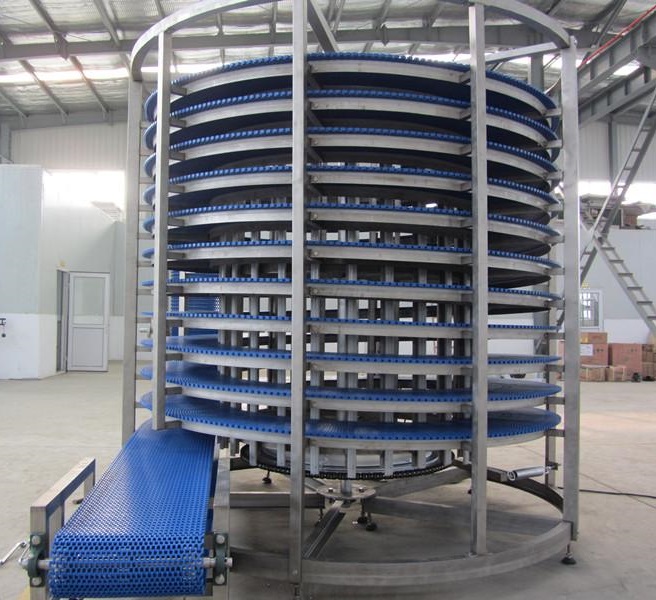

FYL1000 SPIRAL COOLER TECHNICAL PARAMETERS
Item | FSL1000（pouch cooling ） | |
Product | Pouch Cooling | |
Capacity | 1000kg/h | |
In/Out Temp. | +80℃ to 40℃ | |
Cooler Temp. | 0-5℃ | |
In/Out Time | 15-75min( set time 30min) | |
Refrigerant | R507A | |
Refrigeration capacity | 90kw | |
Cooling Container Thickness | 50mm | |
Product Height | ≤60mm | |
Belt Width | 450mm (effective 380mm) | |
Belt length | 150m | |
Belt layer number | 18 layers | |
Drum diameter | 1800mm | |
Product Input Conveyor/Output Conveyor | 1000/500 mm | |
Water Input Pressure | ≥3 kg/cm2 | |
Cooler Power | 12KW(380V50HZ) | |
Cooler Size（L*W*H） | 5000×4000×3500mm （don’t include inter/out conveyor length） | |
Cooler Body Material | Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 50 mm, 304 stainless steel outer plate thickness more than 0.8 mm | |
Main Electric Brand | Schneider(France) | |
Belt and Speed | Food-grade stainless steel belt; Frequency conversion stepless speed regulation | |
Slide Track Material | Ultrahigh molecular polyethylene material. | |
Internal Structure | All made of 304 Stainless Steel Material, Argon arc welding | |
Evaporator | Effective from large aluminum finned tube set, stainless steel panel stent | |
Fan and Motor | Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption | |
