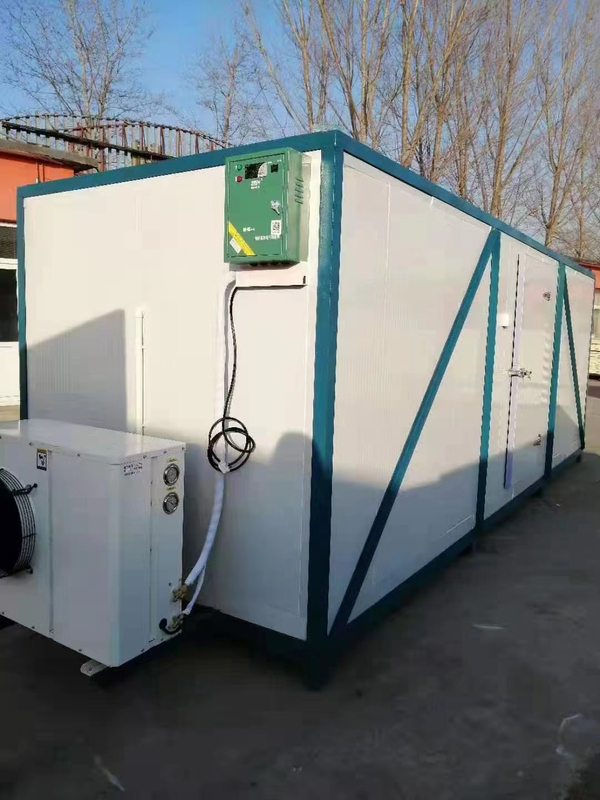

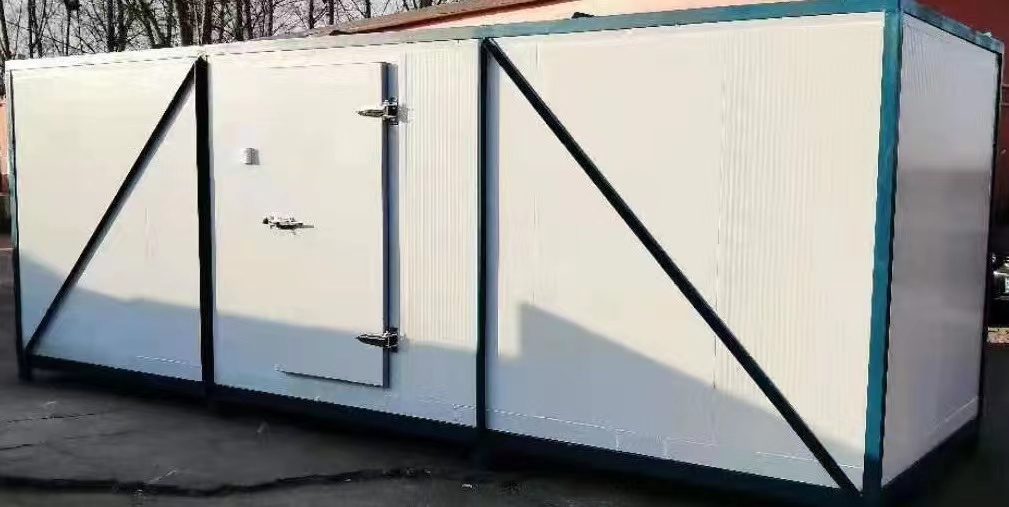

Moving Cold Room 20feet or 40 feet the temperture can choose accodding to client request

Cold room production
Components:
(1) Condensing unit:GermanyBitzer,AmericaCopeland,Italy Frascold ,China brand Etc.
(2) Evaporator:FSTair-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beef,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...
Doors:
1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 36~42kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:50mm~200mm, standard width of panel is 960mm
Availability:
Quantity:
  • FCOR

  • FST

  • FCOR2

Cold room Features:
1. Temperature range: -40º C ~ + 20º C are all available
2. Size: Customization.
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency...
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5 º C ~ + 10 º C
Freezer storage temperature: -25 º C ~ + 18 º C
Quick-frozen storage temperature: -40 º C ~ + 18 º C
The Constant temperature: Customer's request
Storage of produce: Customer's request
Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
Evaporator: KELTESS air cooler.
Insulation Panel: PU, EPS
Other accessories: World-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Application fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.

Features:
1. Temperature range: -40º C ~ + 20º C are all available
2. Size: Customization.
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency...
7. Adjustable indoor temperature saves up to 30% electricity.
The Constant temperature: Customer's request
Storage of produce: Customer's request
Application fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.

Evaporator type

Air Cooled Type Ceiling type  DL (5-20ºC)DD(-5~+5 ºC)DJ(-18~-20ºC)
Aluminum shelving Customize -18 ºC or -35ºC
Evaporator Cooled Type Evaporator Condenser DJS (-30~-40ºC)

Room size type

Room size Mini Small        Middle        Big
Volume range 200m³ 200~1000 1000~5000 >5000

Temperature table for reference

Cold storage goods Temperature range
Processing room 10ºC
Fruit, vegetable, dry food 0~-5ºC
Medicine, cake, pastry, chemical material 0~-5ºC
Ice storage room -5~-10ºC
Fish, meat storage -18~-25ºC
Deep freezer. -25C~-35ºC

Compressor type and condenser

Compressor type Bitzer(Germany) Frascold (Italy) Copeland (US) China brand
Condenser Air cooled Aater cooled Evaporator

Panels information

Office Foam panel 50mm thickness
Processing room 10ºC 50mm/ 75mm PU
-5ºC 75mm/ 100mm PU
-18ºC 100mm/ 150mm PU
-25C/ -35ºC 150mm/200mm PU
Panel steel cover SS, GI, aluminum etc
