China Tai Wang Fusheng Brand SDL330 Double Stage Screw Compressor Refrigeration System Design Plan for IQF Freezer

The compressor unit according to the European standard design and manufacture, cooling source for providing refrigeration equipment (e.g., refrigerator temperature).
Availability:
Quantity:
  • FCR330

  • FST

  • FST-330

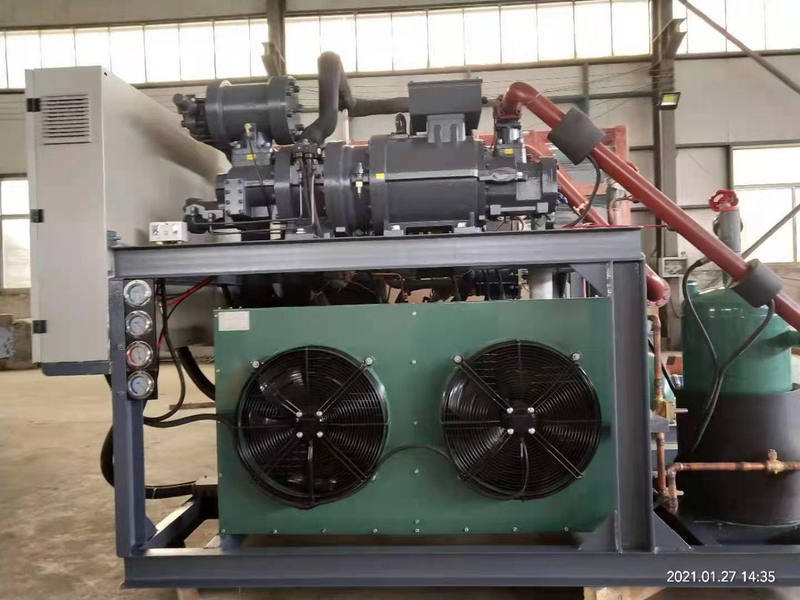

Introducing our Double Stage Low Temperature Screw Compressor Unit:

Double Stage Low Temperature Screw Compressor Unit designed for efficient and rapid freezing at low temperatures. With an impressive evaporating temperature of up to -65 degrees, this unit surpasses the energy-saving capabilities of single stage screw compressor units.

We offer a range of compressor brands including China Taiwan Fu Sheng, Japan Qian Chuan, and Shinko, allowing you the flexibility to choose the best fit for your specific requirements. Our Double Stage Low Temperature Screw Compressor Unit can be used as a standalone unit or in parallel, providing customizable options to meet your needs.

Experience the superior performance and energy efficiency of our Double Stage Low Temperature Screw Compressor Unit tailored to deliver exceptional results in low-temperature applications.

China Tai Wan fusheng brand Compressor units

  Design basis and condition

1、 Design basis

(1)《Design code 》GB50072-2010;

(2)《Heating ventilation and air-conditioning planning design code 》GB50019-2003;

(3)《Refrigeration design handbook》;

(4)User requirement。

2、Design condition

(1)Refrigerant:R404A;

(2)Evaporating condensing temperature:-45/+40℃

1.Compressor unit operating parameter

Operation condition

Compressor unit type

Refrigerating capacity

Electric power

440V/60HZ

-45/+40℃

Fusheng SDL330E

88Kw

54.9Kw


Choose two stage screw compressor 1set:Fusheng SDL330E

2、Air cooled condenser

  Type:FVN700 air cooled condenser. Choose 2 sets ,because shipping too big .

3、Electrical control system :main electrical element are Schneider.

1、compressor unit technical parameters

Compressor unit name

unit

Screw compressor unit

Compressor unit type


FST-SDL330E

Compressor

1set

Fusheng SDL330E

Compressor

Theory Displacement

m3/h

384m3/h 60HZ

Energy Adjustable range


100%-50%-25%

Refrigerant

type


R404A

Design conditions

-45℃/40℃

Refrigeration capacity

KW

88KW

Voltage and power


3N/60Hz/480V 54.9KW

Overall dimensions(L*W*H)

mm

2700×1700×2100

unit weight

kg

~1750

1. Air cooled condenser parameter:

Type

FVN700

Heat exhaust area (㎡)

400

Fan

quantity

6sets

Blowing rate(m3/h)

10800m3/h

Power(kw)

6×0.6KW

Overall dimensions(mm)L*W*H

2600×2100×1200mm

operating weight KG

2000
