Bitzer 4sets 125Hp Screw Compressor Refrigeration System Design Plan for IQF Freezer

The compressor unit according to the European standard design and manufacture, cooling source for providing refrigeration equipment (e.g., refrigerator temperature).
Availability:
Quantity:
  • FCR125

  • FST

  • FST125

Introducing the Bizer brand parallel screw compressor unit

Screw compressor unit a professional and reliable solution for your refrigeration needs.

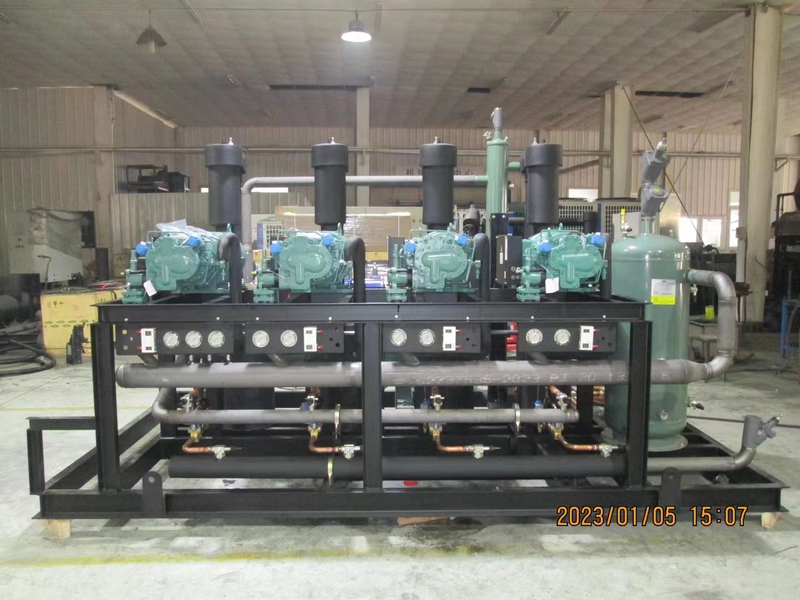

The Bizer parallel low-temperature screw compressor unit is specifically designed to provide a cold source system for quick-freezing machines. We are proud to present the Bizer 125 horsepower parallel compressor unit as an exemplary product.

Featuring four parallel screw compressors, this unit ensures an abundant supply of cold source for a 2T/H quick-freezing machine. With its powerful performance and efficient operation, the Bizer parallel screw unit guarantees optimal cooling capacity, allowing for smooth and uninterrupted freezing processes.

Designed with the utmost precision and using high-quality materials, the Bizer parallel screw unit is built to withstand demanding industrial environments. Its professional construction ensures durability and reliability, making it a long-lasting investment for your business.

In addition to its exceptional performance, the Bizer parallel screw unit also boasts energy efficiency, helping you reduce operational costs and contribute to a greener environment. With its advanced technology and intelligent control system, this unit optimizes energy consumption, ensuring maximum efficiency without compromising on performance.

Choose the Bizer brand parallel screw unit for your refrigeration needs and experience the perfect balance of power, reliability, and efficiency. Trust in our professional-grade equipment to provide you with a consistent and ample cold source for your quick-freezing machine.

Compressor units

Design basis and condition

1、 Design basis

(1)、《design code 》GB50072-2010;

(2)、《heating ventilation and air-conditioning planning design code 》GB50019-2003;

(3)、《refrigeration design handbook》;

(4)、User requirement。

2、Design condition

(1)、Refrigerant:R404A;

(2)、Evaporating condensing temperature:-38/+40℃

二.Equipment selection

1.compressor unit operating parameter

operation condition

Compressor unit type

refrigerating capacity

electric power

-40/+40℃

HSN8571-125*4

387Kw

404Kw

Choose Biter screw compressor 4set:HSN8571-125

2、Evaporation condenser

  Type:ZFLA-1500 evaporation condenser.

3、Electrical control system :main electrical element are Schneider.

1、Compressor unit technical parameters

Compressor unit name

unit

Screw compressor unit

Compressor unit type


FSTHSN8571-125*4

Compressor

4set

Bitzer HSN8571-125Y

Compressor

Theory Displacement

m3/h

         495m3/h/set 60HZ

Energy Adjustable range


100%-75%-50%

refrigerant

type


R404A

Design conditions

-40℃/40℃

refrigeration capacity

KW

387KW

Voltage and power


3N/60Hz/440V 303KW

oil cooler


liquid cooling

Overall dimensions(L*W*H)

mm

4250×2020×2300

Unit weight

kg

~4500
